TROJAN

MEDICAL HYPERBARIC CHAMBER

2.0 ATA PRESSURE

1-SEATER

Front view

Top view

CAPACITY

1 Person (1 seat)

MATERIAL

Aero-space aluminium

SHAPE AND DESIGN

Cylindrical shape, 1 module, designed to fit any standard doorway and space

MINIMUM INSTALLATION FLOOR SIZE:

4500 mm x 2600 mm

OVERALL LENGTH

2346 mm

OVERALL WIDTH

830 mm

HEIGHT

1087 mm

WEIGHT

180 kg

INTERNAL LENGTH

810 mm

INTERNAL VOLUME

1 m3

MAX. OPERATING PRESSURE:

2.0 ATA (1.0 BAR)

DESIGN TEMPERATURE:

0° C to 38° C

AIR PRESSURIZATION:

3.45 bar to 7.2 bar

AIR SUPPLY FLOW

250 LPM

BIBS OXYGEN SUPPLY

3.2 bar to 4.0 bar

VENTILATION RATE:

125 LPM to 400 LPM

EMERGENCY DEPRESSURIZATION RATE:

2.0 ATA to 1.0 ATA in 90 sec

MAXIMUM PATIENT WEIGHT

225 kg

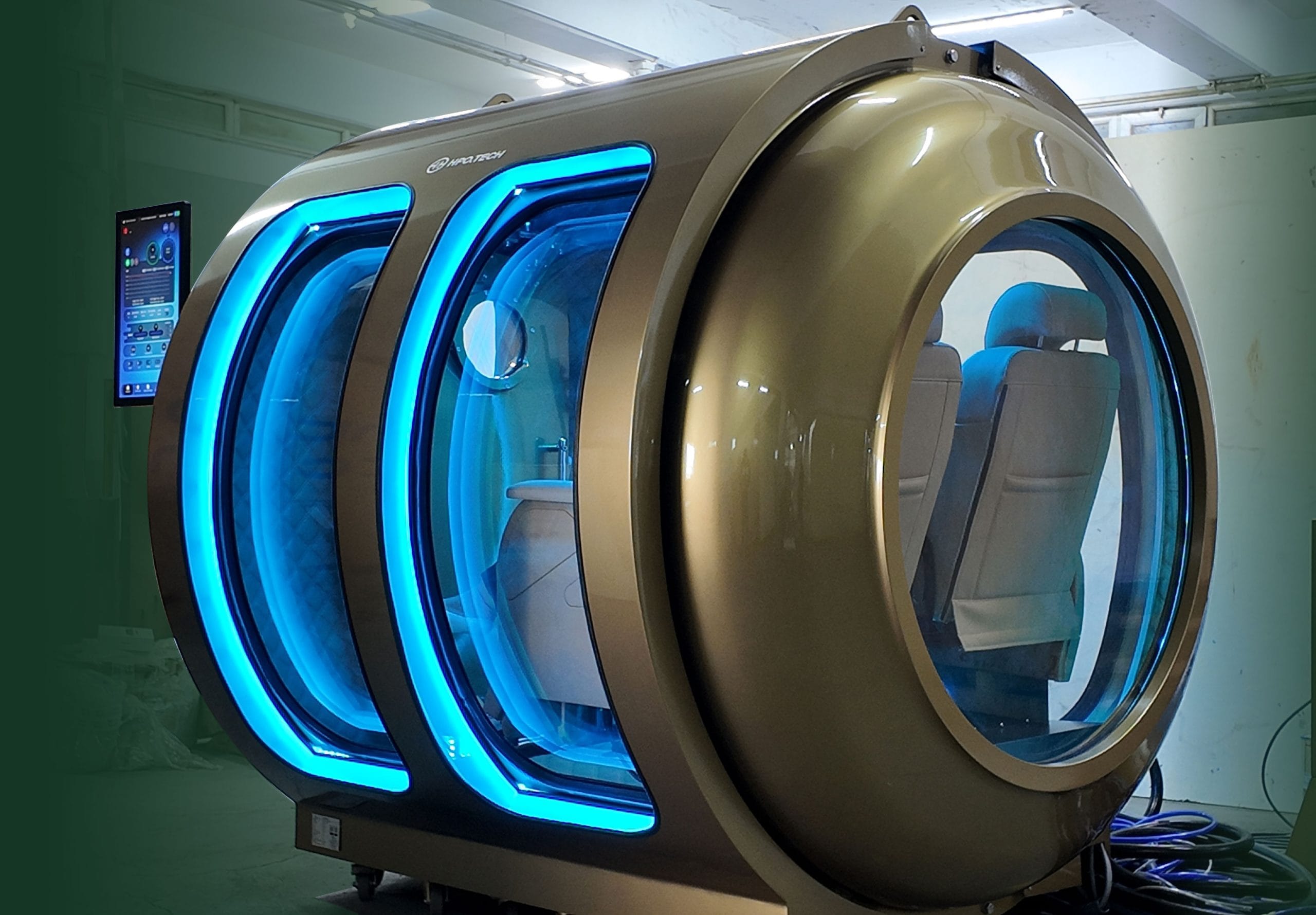

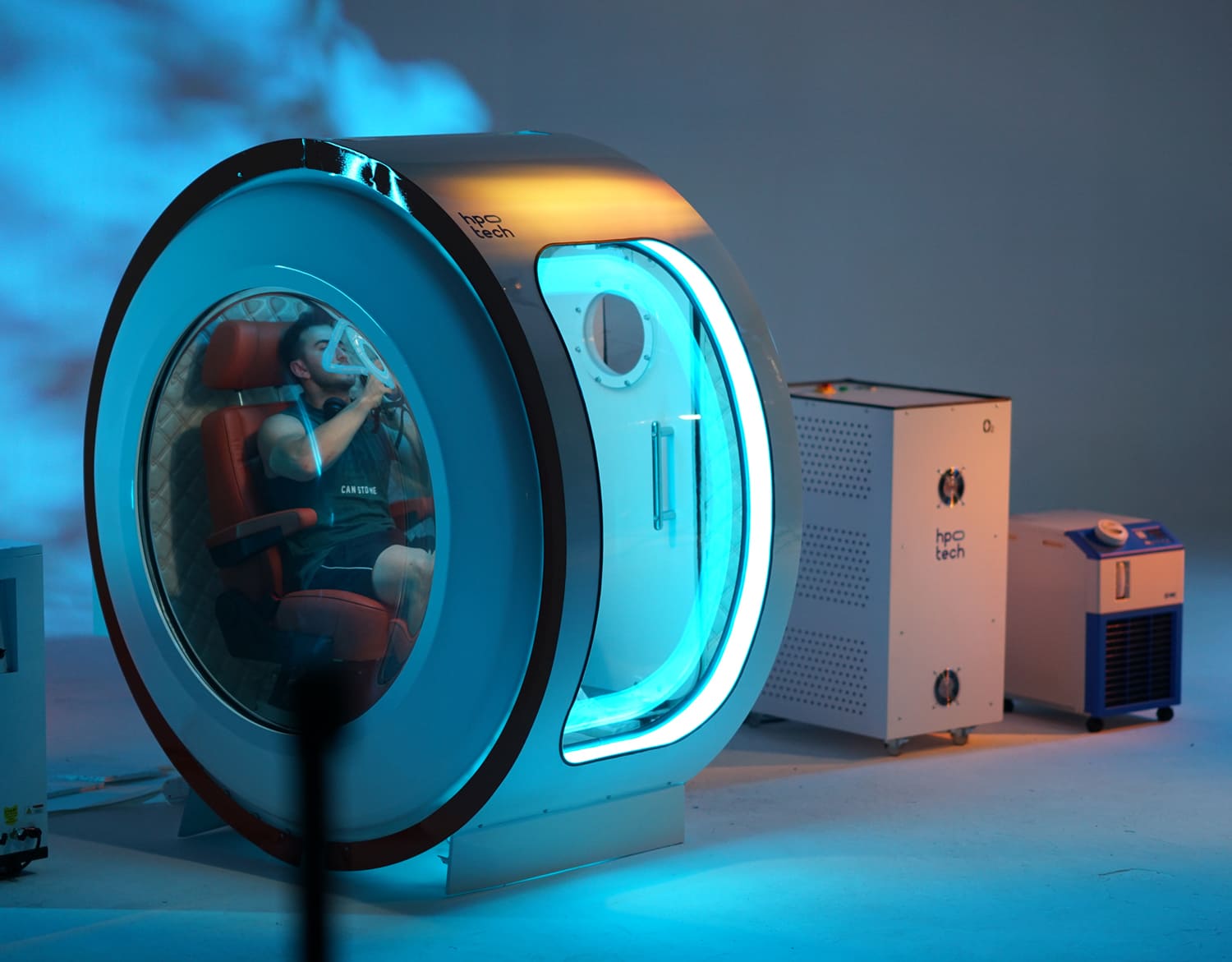

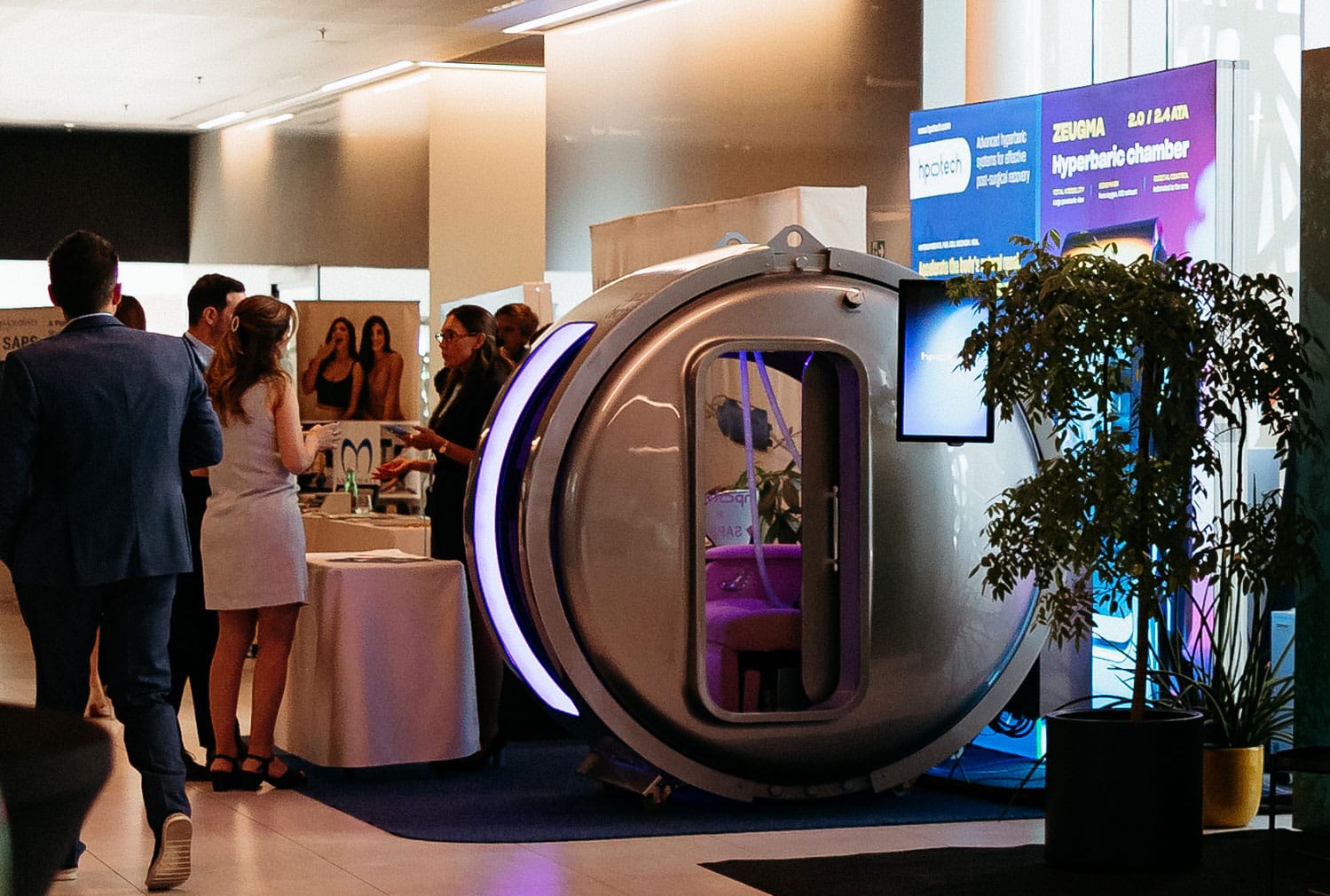

ZEUGMA

WELLNESS HYPERBARIC CHAMBER

2.4 ATA PRESSURE

1-SEATER

Front view

Top view

CAPACITY

1 Person (1 seat)

MATERIAL

Aero-space aluminium

SHAPE AND DESIGN

One unit, cylindrical shape, 3 modules, designed to fit any standard doorway and space

MODULE LENGTH

770 mm

MINIMUM INSTALLATION FLOOR SIZE:

5500 mm x 2800 mm

OVERALL LENGTH

1344 mm

OVERALL WIDTH

1987 mm

HEIGHT

1858 mm

WEIGHT

400 kg

INTERNAL LENGTH

1620 mm

INTERNAL VOLUME

1.9 m3

MAX. OPERATING PRESSURE:

2.0 ATA (1.0 BAR)

DESIGN TEMPERATURE:

0° C to 38° C

AIR PRESSURIZATION:

3.45 bar to 7.2 bar

AIR SUPPLY FLOW

250 LPM

BIBS OXYGEN SUPPLY

3.2 bar to 4.0 bar

VENTILATION RATE:

125 LPM to 400 LPM

EMERGENCY DEPRESSURIZATION RATE:

2.0 ATA to 1.0 ATA in 90 sec

MAXIMUM PATIENT WEIGHT

225 kg

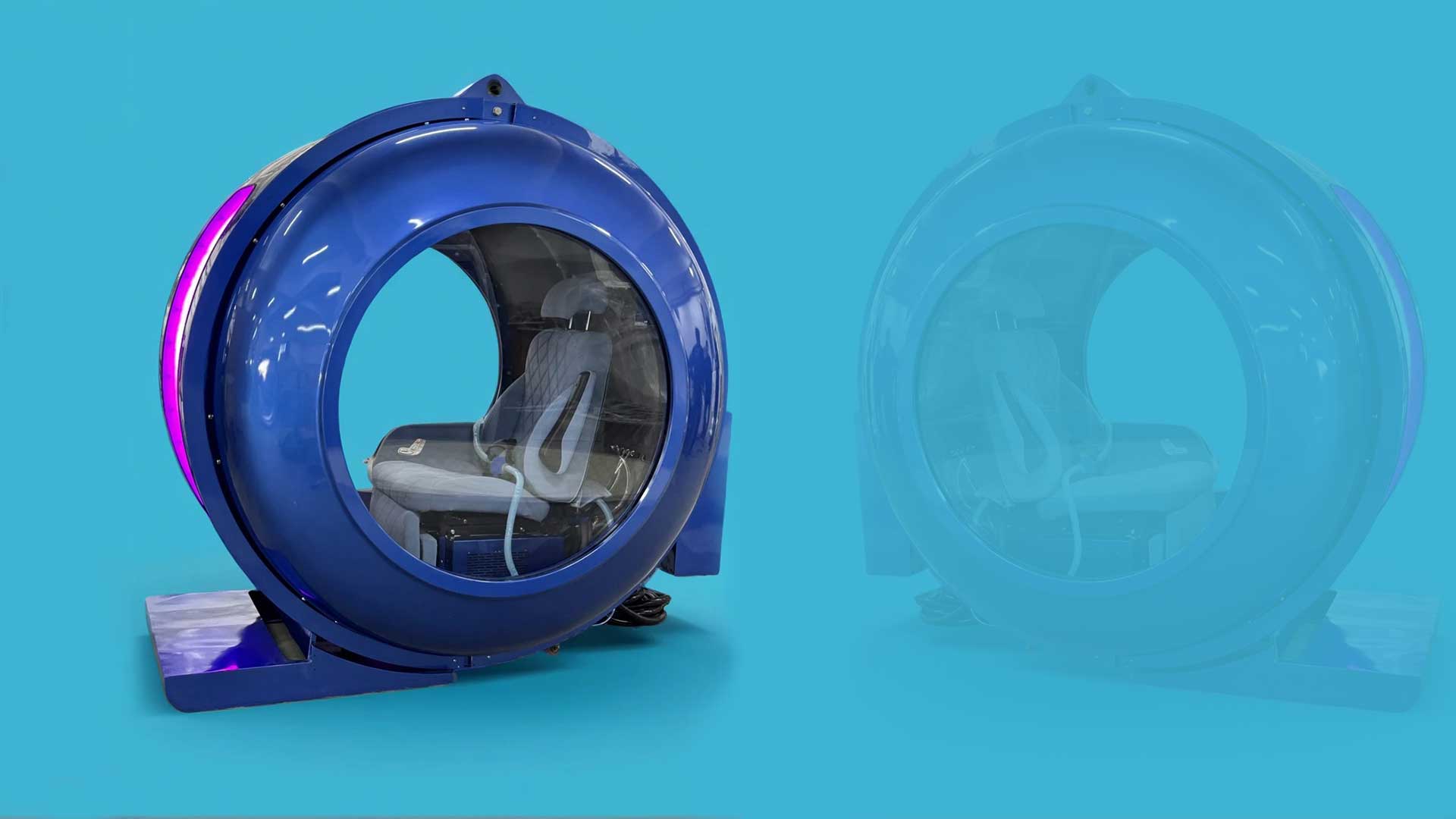

PETRA

WELLNESS HYPERBARIC CHAMBER

2.0 ATA PRESSURE

1-SEATER

Front view

Top view

CAPACITY

1 Person (1 seat)

MATERIAL

Aero-space aluminium

SHAPE AND DESIGN

One unit, cylindrical shape, 3 modules, designed to fit any standard doorway and space

MODULE LENGTH

770 mm

ACRYLIC WINDOWS

30 mm thickness

MINIMUM INSTALLATION FLOOR SIZE:

5500 mm x 2800 mm

OVERALL LENGTH

1344 mm

WIDTH

1238 mm

HEIGHT

1858 mm

ACCESSWAY WIDTH

600 mm

WEIGHT

400 kg

INTERNAL VOLUME

1.9 m3

MAX. OPERATING PRESSURE:

2.0 ATA (1.0 BAR)

DESIGN TEMPERATURE:

0° C to 38° C

AIR PRESSURIZATION:

3.45 bar to 7.2 bar

AIR SUPPLY FLOW

250 LPM

BIBS OXYGEN SUPPLY

3.2 bar to 4.0 bar

VENTILATION RATE:

125 LPM to 400 LPM

EMERGENCY DEPRESSURIZATION RATE:

2.0 ATA to 1.0 ATA in 90 sec

MAXIMUM PATIENT WEIGHT

225 kg

Turbo Venturi System

Precision pressure control

The Turbo Venturi system is a device designed to reduce air pressure. The Venturi effect creates a low-pressure zone used to help draw out air from the capsule, lowering the overall air pressure within the hypobaric chamber.

POWER

4 HP

NEGATIVE PRESSURE RANGE

0.356 ATM (8000 meters)

WEIGHT

67 kg

CAPACITY

600 LPM

NOISE LEVEL

46 decibel

SIZE

(W) 495 mm
(L) 1004 mm
(H) 804 mm

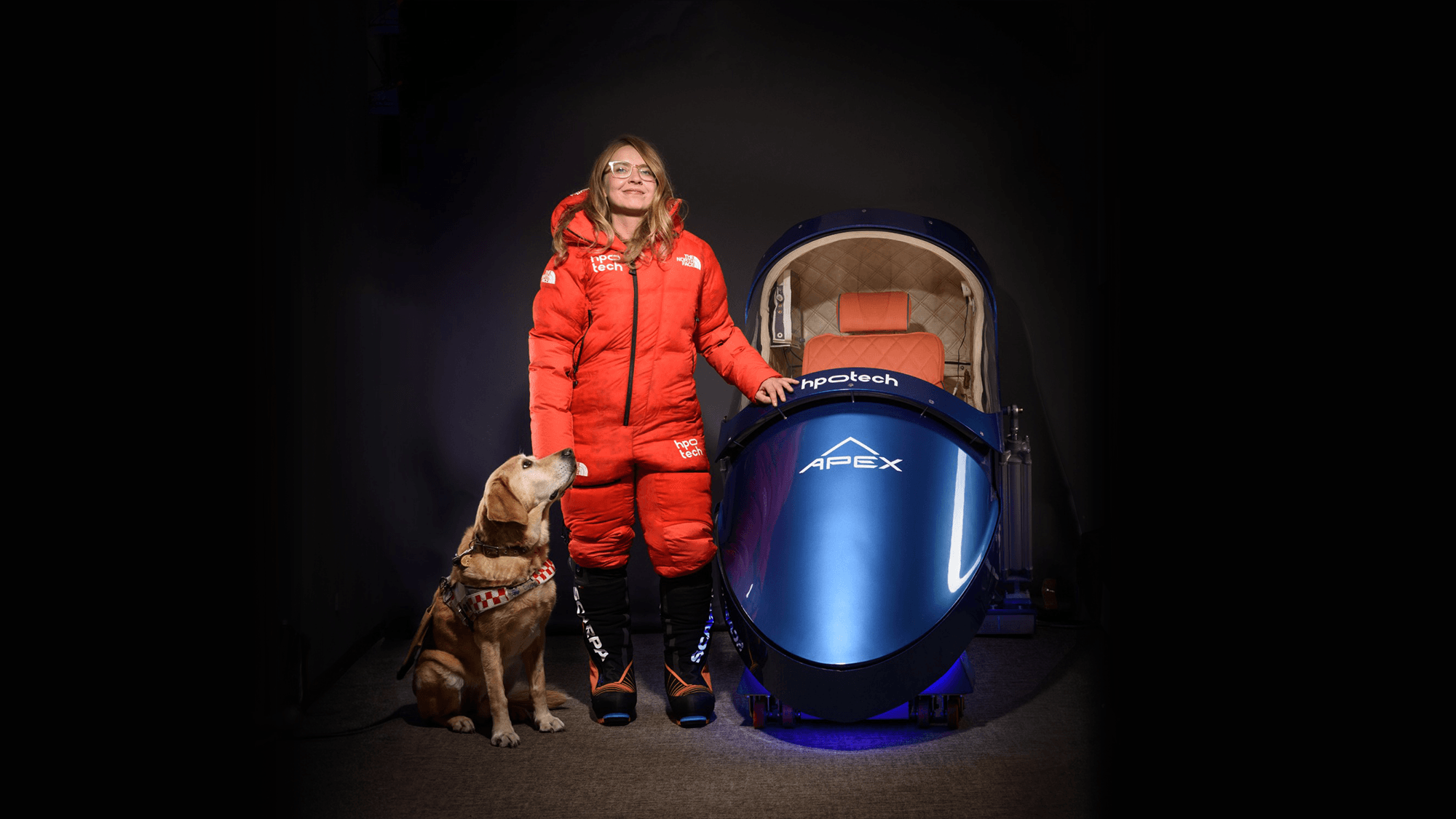

APEX

HYPOBARIC CHAMBER

0.356 ATM (8000 meters)

1-SEATER

Side view

Top view

CAPACITY

1 Person (1 seat)

MATERIAL

Aluminum 5000 series

SHAPE AND DESIGN

One unit, modular, designed to fit any standard doorway and space

MINIMUM INSTALLATION FLOOR SIZE:

5500 mm x 2800 mm

OVERALL LENGTH

2136 mm

OVERALL WIDTH

1166 mm

HEIGHT

1587 mm

WEIGHT

600 kg

INTERNAL LENGTH

1620 mm

INTERNAL VOLUME

0.9 m3

NEGATIVE PRESSURE:

0.356 ATM (8000 meters)

DESIGN TEMPERATURE:

0° C to 38° C

MAXIMUM PATIENT WEIGHT

225 kg

How can I help? Write your message and I will reply shortly.

Book a talk with our consultant

TITANIC

MEDICAL HYPERBARIC CHAMBER

3.0 ATA - 6.0 ATA (5.0 bar)

12+2 SEATER

Front view

Top view

SYSTEM FEATURES

• Session data logger
• Cameras & monitoring system
• Smoke detectors
• USB ports
• Tablets and entertaining systems
• Patient vitals monitoring screens
• Different working pressure levels
• RGB LED lighting
• Brandable Ergonomic seats
• Brandable interior-exterior design
• Custom 3D epoxy flooring

OVERALL LENGTH

7988 mm

OVERALL WIDTH

2356 mm

HEIGHT

2604 mm

INTERNAL DIAMETER

2200 mm

CAPACITY

4+2, 6+2, 8+2, 10+2, 12+2 patients (up to 14 seats)

MATERIAL

Steel

SHAPE AND DESIGN

Modular cylindrical shape, designed to fit any standard doorway and space

MODULE LENGTH

770 mm

MINIMUM INSTALLATION FLOOR SIZE:

Technical room (compressor & dryer & air tanks): 9000 mm x 6200 mm

MINIMUM INSTALLATION FLOOR SIZE:

Chamber room (chamber & fire system): 13000 mm x 6000 mm

MAX. OPERATING PRESSURE:

3.0 ATA – 6.0 ATA (5.0 bar)

MAX DESIGN OVER-PRESSURE

5.5 bar

TESTING OVER-PRESSURE

8.25 bar

DESIGN TEMPERATURE:

0° C to 38° C

AIR SUPPLY FLOW

450 LPM

BIBS OXYGEN SUPPLY

5 bar / 40 LPM Flow

VENTILATION RATE:

600 LPM

EMERGENCY DEPRESSURIZATION RATE:

3 ATA to 1 ATA in 125 sec

MAXIMUM PATIENT WEIGHT

225 kg

TITANIC

MEDICAL HYPERBARIC CHAMBER

3.0 ATA - 6.0 ATA (5.0 bar)

12+2 SEATER

Front view

Top view

SYSTEM FEATURES

• Session data logger
• Cameras & monitoring system
• Smoke detectors
• USB ports
• Tablets and entertaining systems
• Patient vitals monitoring screens
• Different working pressure levels
• RGB LED lighting
• Brandable Ergonomic seats
• Brandable interior-exterior design
• Custom 3D epoxy flooring

OVERALL LENGTH

7988 mm

OVERALL WIDTH

2356 mm

HEIGHT

2604 mm

INTERNAL DIAMETER

2200 mm

CAPACITY

4+2, 6+2, 8+2, 10+2, 12+2 patients (up to 14 seats)

MATERIAL

Steel

SHAPE AND DESIGN

Modular cylindrical shape, designed to fit any standard doorway and space

MODULE LENGTH

770 mm

MINIMUM INSTALLATION FLOOR SIZE:

Technical room (compressor & dryer & air tanks): 9000 mm x 6200 mm

MINIMUM INSTALLATION FLOOR SIZE:

Chamber room (chamber & fire system): 13000 mm x 6000 mm

MAX. OPERATING PRESSURE:

3.0 ATA – 6.0 ATA (5.0 bar)

MAXIMUM DESIGN OVERPRESSURE:

5.5 bar

TESTING OVER-PRESSURE:

8.25 bar

DESIGN TEMPERATURE:

0° C to 38° C

AIR SUPPLY FLOW

450 LPM

BIBS OXYGEN SUPPLY

5 bar / 40 LPM Flow

VENTILATION RATE:

600 LPM

EMERGENCY DEPRESSURIZATION RATE:

3 ATA to 1 ATA in 125 sec

MAXIMUM PATIENT WEIGHT

225 kg

Fire suppression system

The Fire Suppression System is used to extinguish, control, or entirely prevent fires from spreading or occurring. It comprises two water stock tanks: the main 1000 L tank, and the 500 L tank in the antechamber, including 3 high-pressure nitrogen tubes.

100 L WATER TANK

(H) 1895 mm

(W) 750 mm

500 L WATER TANK

(H) 1395 mm

(W) 750 mm

NITROGEN CYLINDERS

(H) 1456 mm

(W) 230 mm

Control Panel

HEIGHT

1652 mm

WIDTH

1490 mm

DEPTH

1160 mm

Air Stock Tanks

The air is circulated through the four Air Stock Tanks (3) and into the Hyperbaric Chamber to maintain the desired pressure levels.

HEIGHT

2140 mm

WIDTH

1000 mm

DISTANCE BETWEEN TANKS

657 mm

Air Compressor

Ozen Kompresor

Precision pressure control

The multi-place Hyperbaric Chamber is pressurized with breathable air from two Air Compressors.

The air is circulated through the Air Dryer, and filtered through a system of carbon, oil, and microparticle filters – to remove the water inherent in compressed air. Then the air is circulated through four Air Stock Tanks, and into the hyperbaric chamber.

The operator controls treatment pressure and duration protocols according to the physician’s recommendations.

WORKING PRESSURE

75 / 10 / 13 BAR

CAPACITY (FAD)

19.57 / 17.1 / 14.68 m3/min

MOTOR POWER

110 kW / 150 HP

NOISE LEVEL

76 dB(A)

WEIGHT

2650-2740 KG

DIMENSIONS

(W) 1700 mm
(L) 2700 mm
(H) 1855 mm

CONNECTION DIAMETER

2″

Superior performance & durability

This series is designed with high performance and reliability in mind. The products in the series perfectly satisfy the ease of installation, simple maintenance, high efficiency and durability demands of the hyperbaric chamber healthcare sector.

Thanks to its reliable belt tension system and Premium Efficient Motor, it provides high efficiency air flow while helping to save lifetime costs.

With the frequency inverter, it detects the instant air requirement of the facility and adjusts the engine speed accordingly. Thus, operating costs are reduced by saving up to 35% energy.

The Ozen Energy Recovery solution makes it possible to use waste heat from the compressor in the facility. With the wide product range, the right compressed air solution is always at your fingertips.

Certified equipment

HPO TECH hyperbaric systems are built with high-quality auxiliary technology. Ozen Kompresor uses components that comply with international standards for products that stand out for their performance and durability.

Request a quote

[forminator_form id=”2854″]

MATRIX

WELLNESS HYPERBARIC CHAMBER

2.0 ATA PRESSURE

1 & 2 SEATER

Front view

Top view

CAPACITY

1 Person (1 seat)
2 Persons (2 Seats) – Optional

MATERIAL

Steel pressure vessel

SHAPE AND DESIGN

2 module cube shape, designed to fit any standard doorway and space

MODULE LENGTH

770 mm

MINIMUM INSTALLATION FLOOR SIZE:

4500 mm x 300 mm

OVERALL LENGTH

1750 mm

OVERALL WIDTH

1442 mm

HEIGHT

1793 mm

WEIGHT

1550 kg

INTERNAL LENGTH

1731 mm

INTERNAL VOLUME

5.8 m3

MAX. OPERATING PRESSURE:

2.0 ATA (1.0 BAR)

DESIGN TEMPERATURE:

0° C to 38° C

AIR PRESSURIZATION:

3.45 bar to 7.2 bar

AIR SUPPLY FLOW

250 LPM

BIBS OXYGEN SUPPLY

3.2 bar to 4.0 bar

VENTILATION RATE:

150 LPM

EMERGENCY DEPRESSURIZATION RATE:

2.0 ATA to 1.0 ATA in 90 sec

MAXIMUM PATIENT WEIGHT

225 kg

GIZA

WELLNESS HYPERBARIC CHAMBER

2.0 ATA PRESSURE

4-SEATER

Front view

Top view

CAPACITY

4 Persons (4 seats)

MATERIAL

Aero-space aluminium

SHAPE AND DESIGN

3 module cylindrical shape, designed to fit any standard doorway and space

MODULE LENGTH

770 mm

MINIMUM INSTALLATION FLOOR SIZE:

6000 mm x 3500 mm

OVERALL LENGTH

2926 mm

OVERALL WIDTH

1848 mm

HEIGHT

1860 mm

WEIGHT

870 kg

INTERNAL LENGTH

2900 mm

INTERNAL VOLUME

5.8 m3

MAX. OPERATING PRESSURE:

2.0 ATA (1.0 BAR)

DESIGN TEMPERATURE:

0° C to 38° C

AIR PRESSURIZATION:

3.45 bar to 7.2 bar

AIR SUPPLY FLOW

450 LPM

BIBS OXYGEN SUPPLY

3.2 bar to 4.0 bar

VENTILATION RATE:

125 LPM to 400 LPM

EMERGENCY DEPRESSURIZATION RATE:

2.0 ATA to 1.0 ATA in 90 sec

MAXIMUM PATIENT WEIGHT

225 kg

ATLANTIS

WELLNESS HYPERBARIC CHAMBER

2.0 ATA PRESSURE

2-SEATER

Front view

Top view

CAPACITY

2 Persons (2 seats)

MATERIAL

Aero-space aluminium

SHAPE AND DESIGN

Cylindrical shape, 2 modules, designed to fit any standard doorway and space

MODULE LENGTH

770 mm

MINIMUM INSTALLATION FLOOR SIZE:

4400 mm x 3000 mm

OVERALL LENGTH

2151 mm

OVERALL WIDTH

2000 mm

HEIGHT

1859 mm

WEIGHT

650 kg

INTERNAL LENGTH

1700 mm

INTERNAL VOLUME

1.9 m3

MAX. OPERATING PRESSURE:

2.0 ATA (1.0 BAR)

DESIGN TEMPERATURE:

0° C to 38° C

AIR PRESSURIZATION:

3.45 bar to 7.2 bar

AIR SUPPLY FLOW

450 LPM

BIBS OXYGEN SUPPLY

3.2 bar to 4.0 bar

VENTILATION RATE:

125 LPM to 400 LPM

EMERGENCY DEPRESSURIZATION RATE:

2.0 ATA to 1.0 ATA in 90 sec

MAXIMUM PATIENT WEIGHT

225 kg

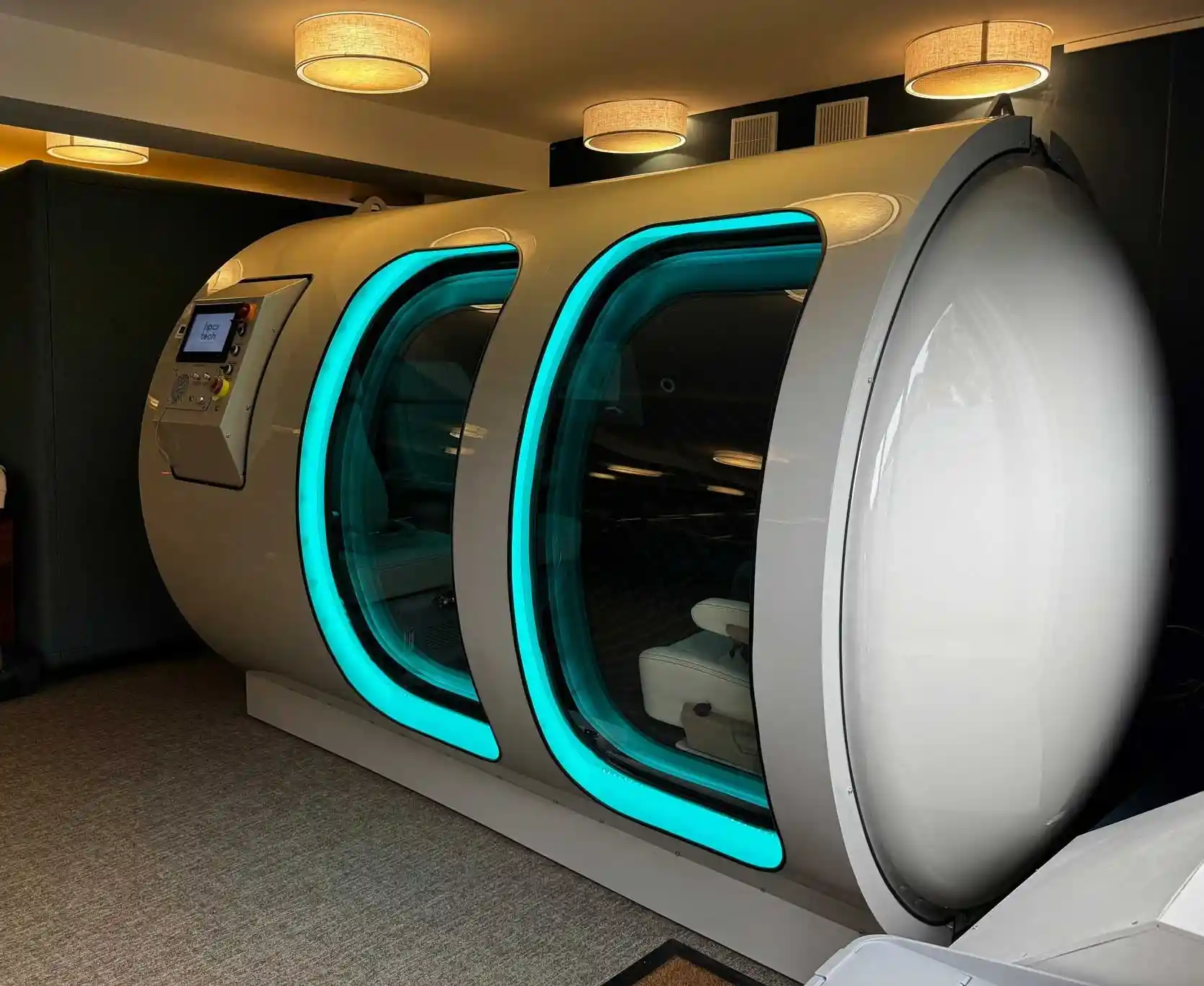

MEDITERRANEAN

WELLNESS HYPERBARIC CHAMBER

2.0 ATA PRESSURE

4-SEATER

Front view

Top view

CAPACITY

4 persons (4 seats)

MATERIAL

Aero-space aluminium

SHAPE AND DESIGN

3 module cylindrical shape, designed to fit any standard doorway and space

MODULE LENGTH

770 mm

MINIMUM INSTALLATION FLOOR SIZE:

6000 mm x 3500 mm

OVERALL LENGTH

2926 mm

OVERALL WIDTH

1910 mm

HEIGHT

1860 mm

WEIGHT

870 kg

INTERNAL LENGTH

2900 mm

INTERNAL VOLUME

5.8 m3

MAX. OPERATING PRESSURE:

2.0 ATA (1.0 BAR)

DESIGN TEMPERATURE:

0° C to 38° C

AIR PRESSURIZATION:

3.45 bar to 7.2 bar

AIR SUPPLY FLOW

450 LPM

BIBS OXYGEN SUPPLY

3.2 bar to 4.0 bar

VENTILATION RATE:

125 LPM to 400 LPM

EMERGENCY DEPRESSURIZATION RATE:

2.0 ATA to 1.0 ATA in 90 sec

MAXIMUM PATIENT WEIGHT

225 kg

Built-in Breathing System (BIBS)

Welcome a new age of controlled breathing

The comfortable Built-in Breathing System (BIBS) mask enables patients to inhale oxygen inside the hyperbaric chamber. BIBS regulators offer a safe, effective, and user-friendly solution for delivering oxygen in hyperbaric chambers, particularly for patients requiring continuous flow or those who may benefit from simplified operation.

CONTINUOUS FLOW OF OXYGEN

Unlike demand regulators, which only deliver oxygen when the user inhales, BIBS systems provide a constant flow of oxygen regardless of breathing patterns. This can be beneficial for patients who struggle with deep breaths or have conditions affecting their respiratory muscles.

REDUCED RISK OF CO2 BUILDUP

As the system constantly flushes the chamber with fresh oxygen, it helps prevent the buildup of carbon dioxide, which can be harmful at high pressures.

SIMPLIFIED OPERATION

BIBS systems require minimal interaction from the user, making them easier to use for patients with limited mobility or cognitive abilities.

CONTROLLED OXYGEN CONCENTRATION

The flow rate of oxygen can be precisely adjusted to deliver the desired concentration, even if the pressure inside the chamber fluctuates.

Air Cooler

Champion your breath of pure oxygen.

HPO TECH high-pressure oxygen concentrators are designed to deliver 20 LPM of pure oxygen content of over 90% at 5.0 BAR pressure. This ensures that every breath taken within the hyperbaric chamber is enriched with the vital oxygen, maximizing the potential for wellness and healing.

COOLING CAPACITY

1 kW (at −10°C)

TEMPERATURE STABILITY

±0.1°C

SET TEMPERATURE RANGE

−10°C to 40°C

COOLING METHOD

Air-cooled refrigeration

SIZE

(W) 377 mm
(L) 500 mm
(H) 640 mm

Oxygen Concentrator

Champion your breath of pure oxygen.

HPO TECH high-pressure oxygen concentrators are designed to deliver 20 LPM of pure oxygen content of over 90% at 5.0 BAR pressure. This ensures that every breath taken within the hyperbaric chamber is enriched with the vital oxygen, maximizing the potential for wellness and healing.

POWER

2500 W / 3,3 HP

OXYGEN FLOW RANGE

1~20 LPM

OXYGEN OUTPUT PRESSURE

5 BAR / 72 PSI

OXYGEN PURITY

±93%

NET WEIGHT (KG)

155 KG

NOISE DB(A)

≤ 72 DB

DIMENSION (MM)

(L) 695 mm
(W) 481 mm
(H) 1070 mm

Air Compressor

Precision pressure control

The Air Compressor fills the chamber with air. The system compresses, maintains the patient at the desired pressure, and decompresses. Treatment pressure and duration protocols are controlled by the operator according to the physician’s recommendations.

The Deep Dive Agenda

NEWS

Meet HPO TECH at the Don’t Die Summit hosted by Bryan Johnson on March 22nd

The world’s premier longevity event is held at the Mana Wynwood Convention Center, Miami (FL)

THE DEEP DIVE

Filter

Our HBOT technology is making headlines.

Better HBOT technology. Better hyperbaric healthcare.

Write an email. We’ll reply in one easy breath.

TROJAN

Front view

Top view

CAPACITY

1 Person (1 seat)

MATERIAL

Aero-space aluminium

SHAPE AND DESIGN

Cylindrical shape, 1 module, designed to fit any standard doorway and space

MINIMUM INSTALLATION FLOOR SIZE:

4500 mm x 2600 mm

OVERALL LENGTH

2346 mm

OVERALL WIDTH

830 mm

HEIGHT

1087 mm

WEIGHT

180 kg

INTERNAL LENGTH

810 mm

INTERNAL VOLUME

1 m3

MAX. OPERATING PRESSURE:

2.0 ATA (1.0 BAR)

DESIGN TEMPERATURE:

0° C to 38° C

AIR PRESSURIZATION:

3.45 bar to 7.2 bar

AIR SUPPLY FLOW

250 LPM

BIBS OXYGEN SUPPLY

3.2 bar to 4.0 bar

VENTILATION RATE:

125 LPM to 400 LPM

EMERGENCY DEPRESSURIZATION RATE:

2.0 ATA to 1.0 ATA in 90 sec

MAXIMUM PATIENT WEIGHT

225 kg

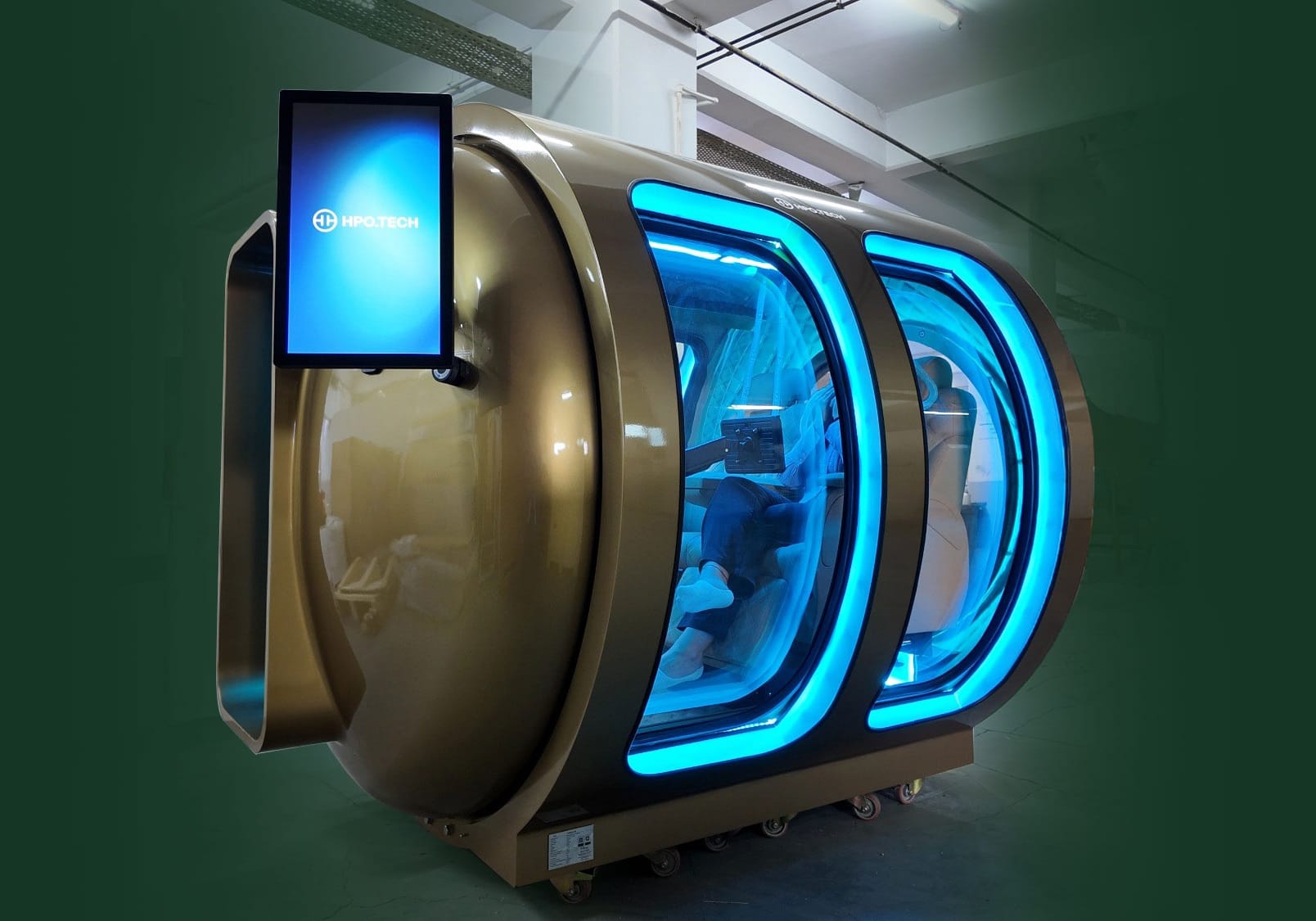

ZEUGMA

Front view

Top view

CAPACITY

1 Person (1 seat)

MATERIAL

Aero-space aluminium

SHAPE AND DESIGN

One unit, cylindrical shape, 3 modules, designed to fit any standard doorway and space

MODULE LENGTH

770 mm

MINIMUM INSTALLATION FLOOR SIZE:

5500 mm x 2800 mm

OVERALL LENGTH

1344 mm

OVERALL WIDTH

1987 mm

HEIGHT

1858 mm

WEIGHT

400 kg

INTERNAL LENGTH

1620 mm

INTERNAL VOLUME

1.9 m3

MAX. OPERATING PRESSURE:

2.0 ATA (1.0 BAR)

DESIGN TEMPERATURE:

0° C to 38° C

AIR PRESSURIZATION:

3.45 bar to 7.2 bar

AIR SUPPLY FLOW

Better HBOT technology.
Better hyperbaric healthcare.
