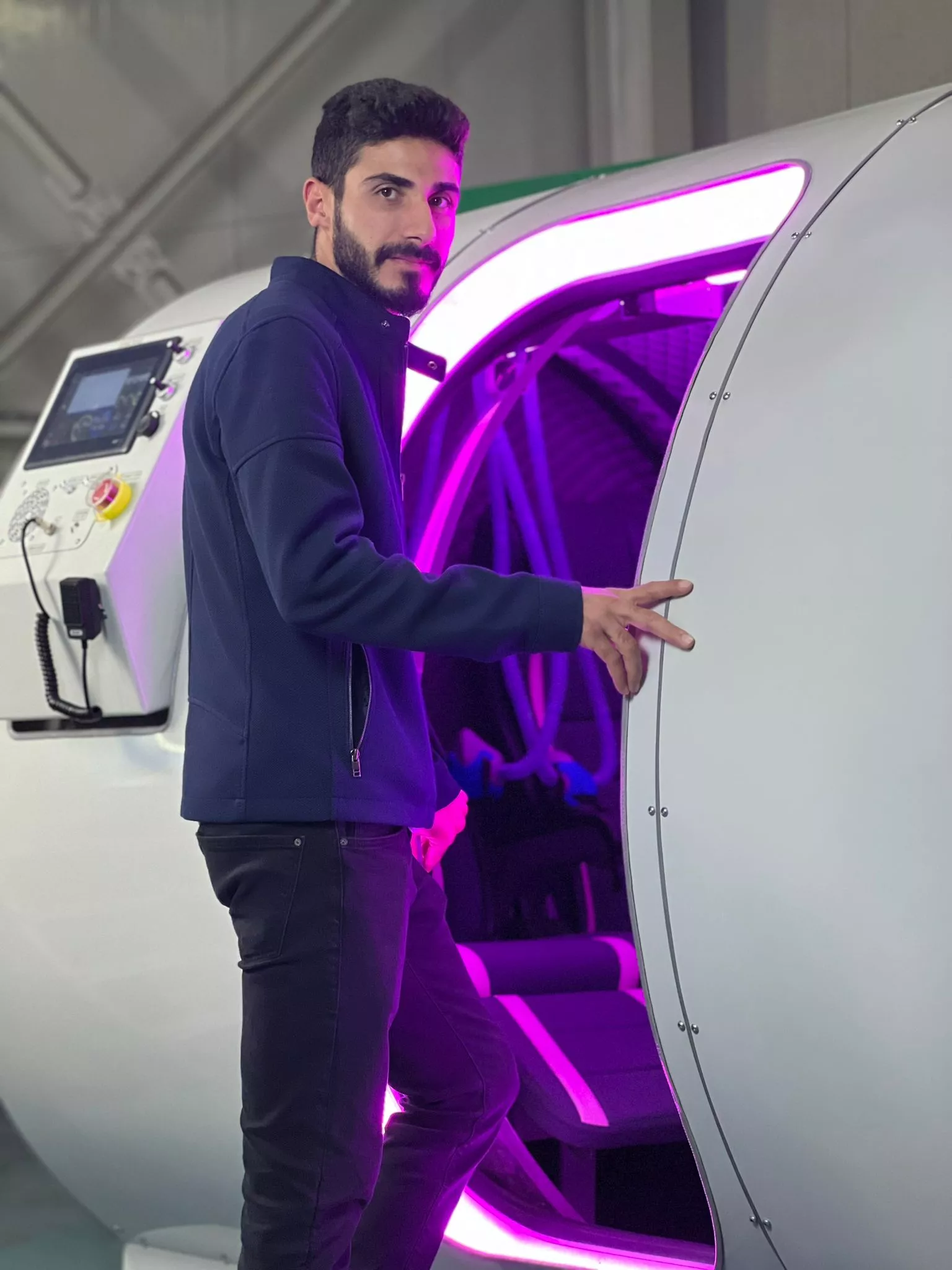

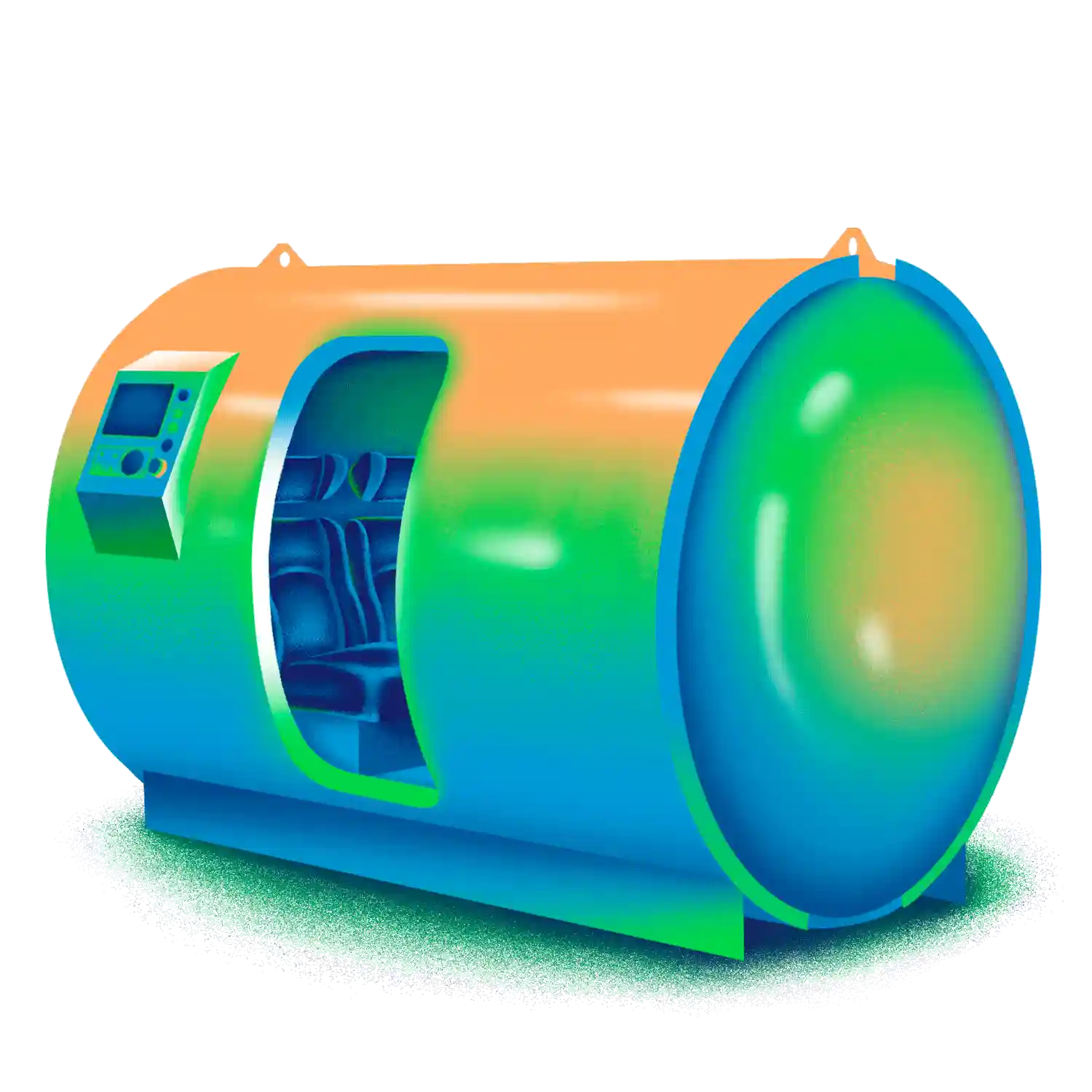

GIZA
Multiplace Hyperbaric Chamber
Roomy, relaxing, efficient, social. Hyperbaric oxygen therapy times four.
2.4 ATA PRESSURE
4-SEATER
The 4-seater GIZA hyperbaric chamber system is designed like a homely capsule to enhance your interior comfort, promote a relaxing oxygen breathing session, also to encourage human connection and team spirit during therapy.
Safe, simple to use, low maintenance, and modular.
Oxygen breathing times four.
Share the HBOT chamber healing journey with your friends, family, or other users. Enjoy automated controls and all the comforts of interior leather, ergonomic seating, ambient lights, and entertainment.

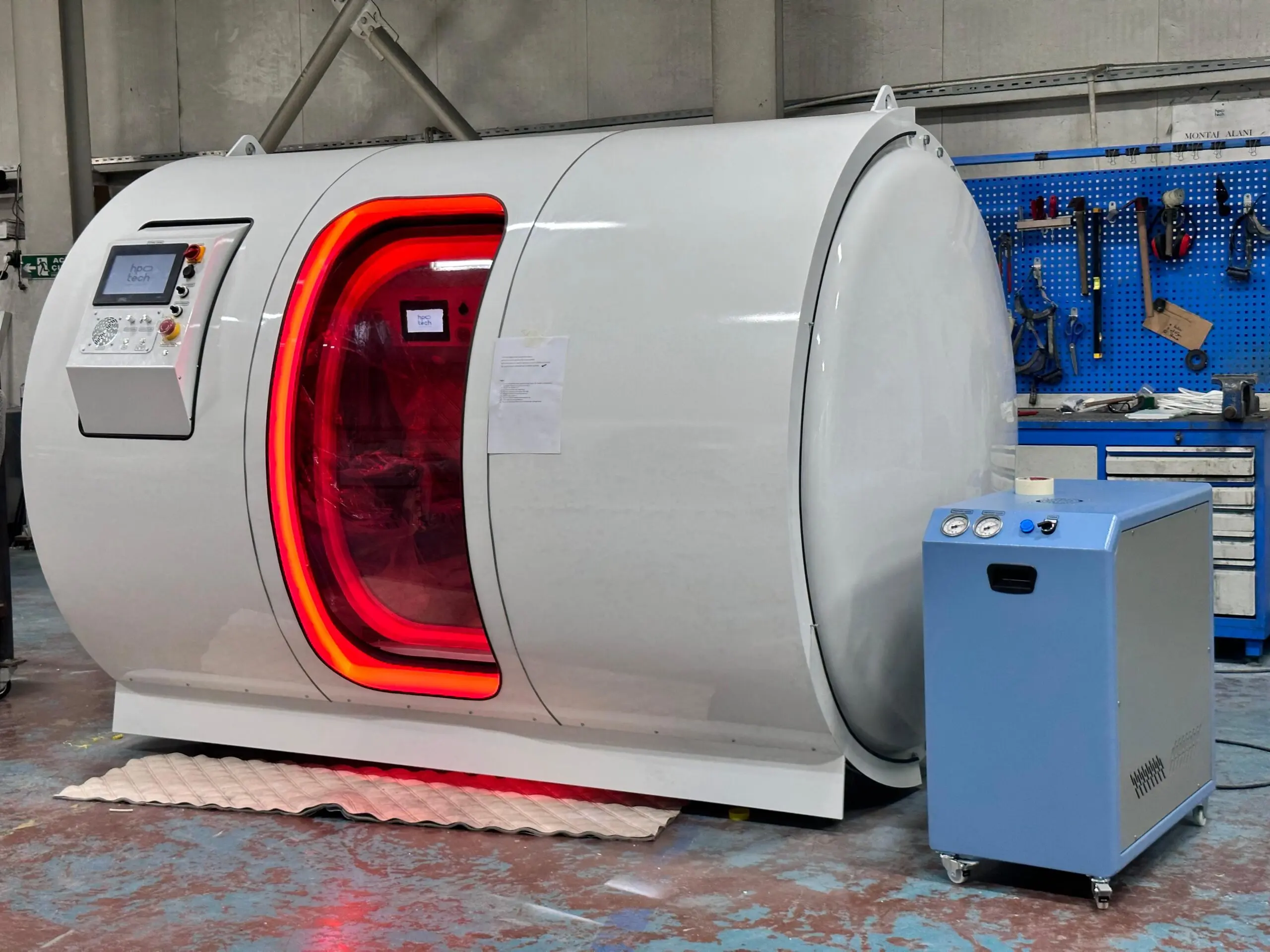

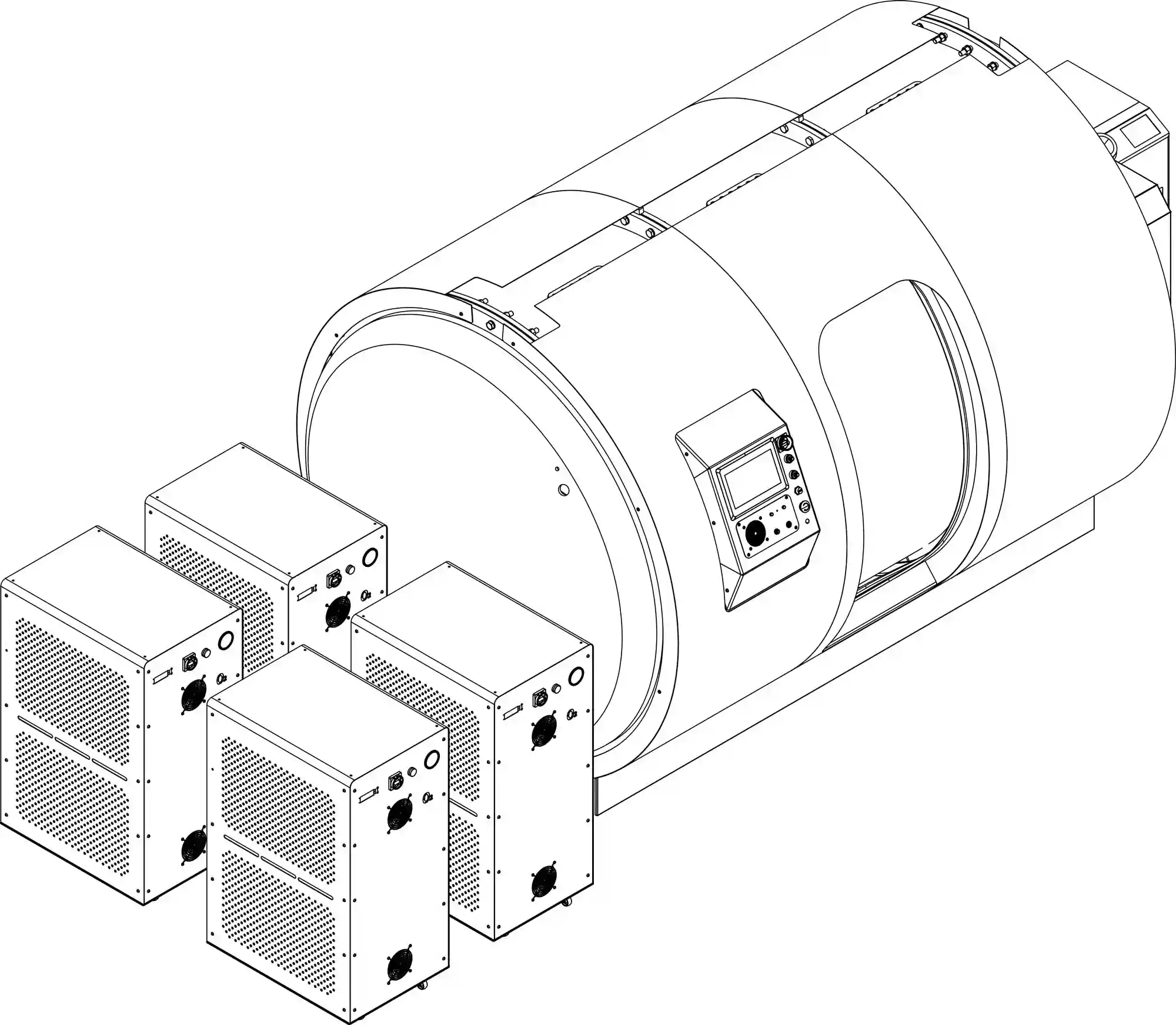

The hyperbaric chamber system

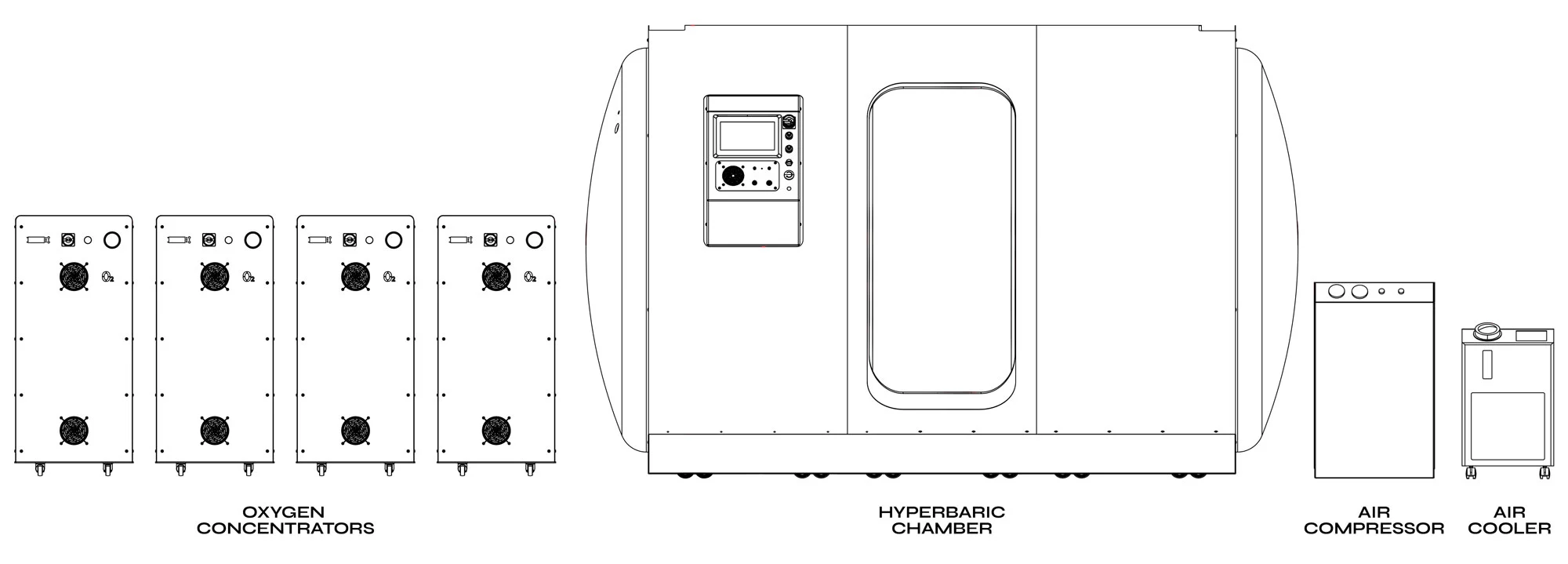

System components

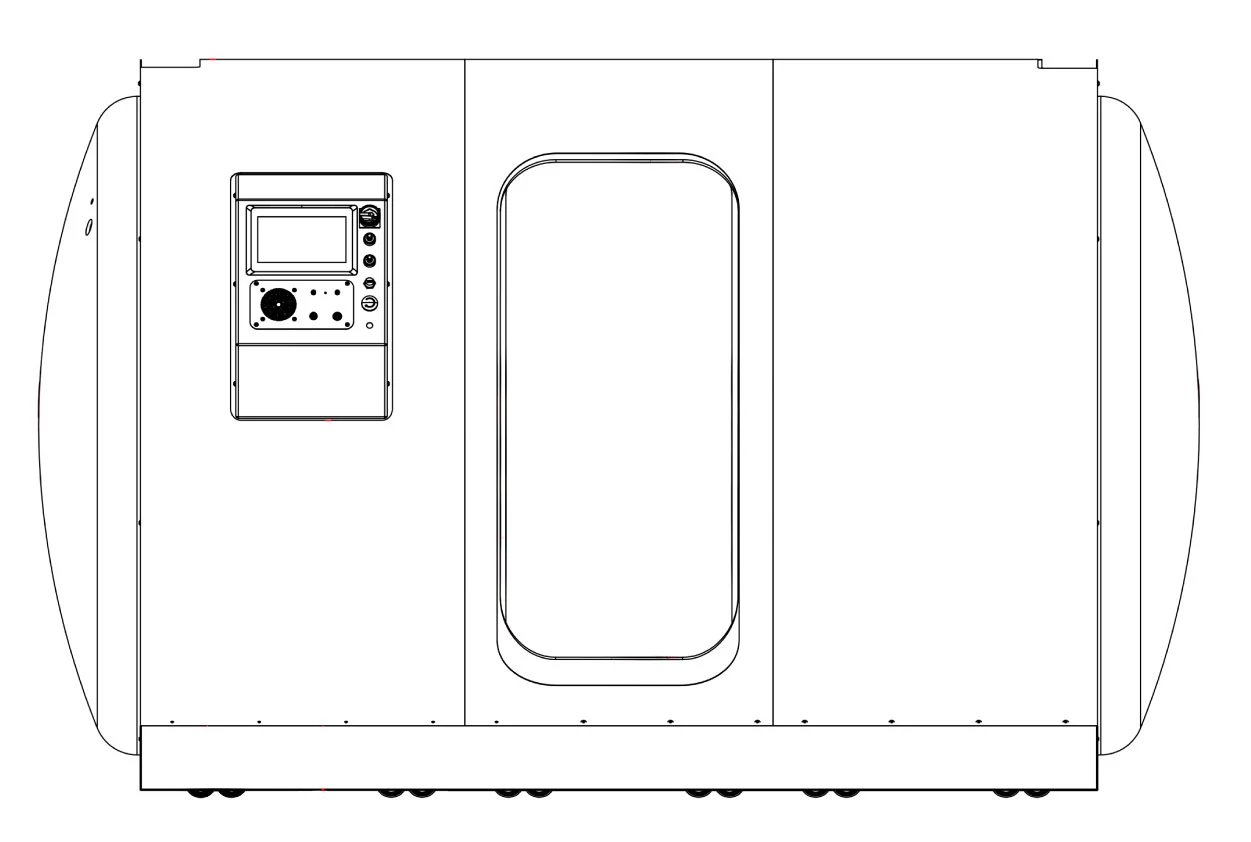

Hyperbaric Chamber
2 SEATS
The Hyperbaric Chamber is a capsule used for breathing pure oxygen under controlled pressure levels up to double than atmospheric pressure (2.0 ATA).
Air Compressor
1 UNIT
The Hyperbaric chamber is pressurized with breathable air from the Air Compressor. Pressure + Oxygen are the two most important factors in HBOT.
Oxygen Concentrator
4 UNITS
During treatment, the user breathes high-purity oxygen supplied using the Oxygen Concentrators, directly into the BIBS (Built-In Breathing system). The number of Oxygen Concentrators is equal to the number of patients inside.
Air Cooler
1 UNIT
The system is also connected to an Air Cooler to keep the air fresh inside the chamber and the temperature under control.

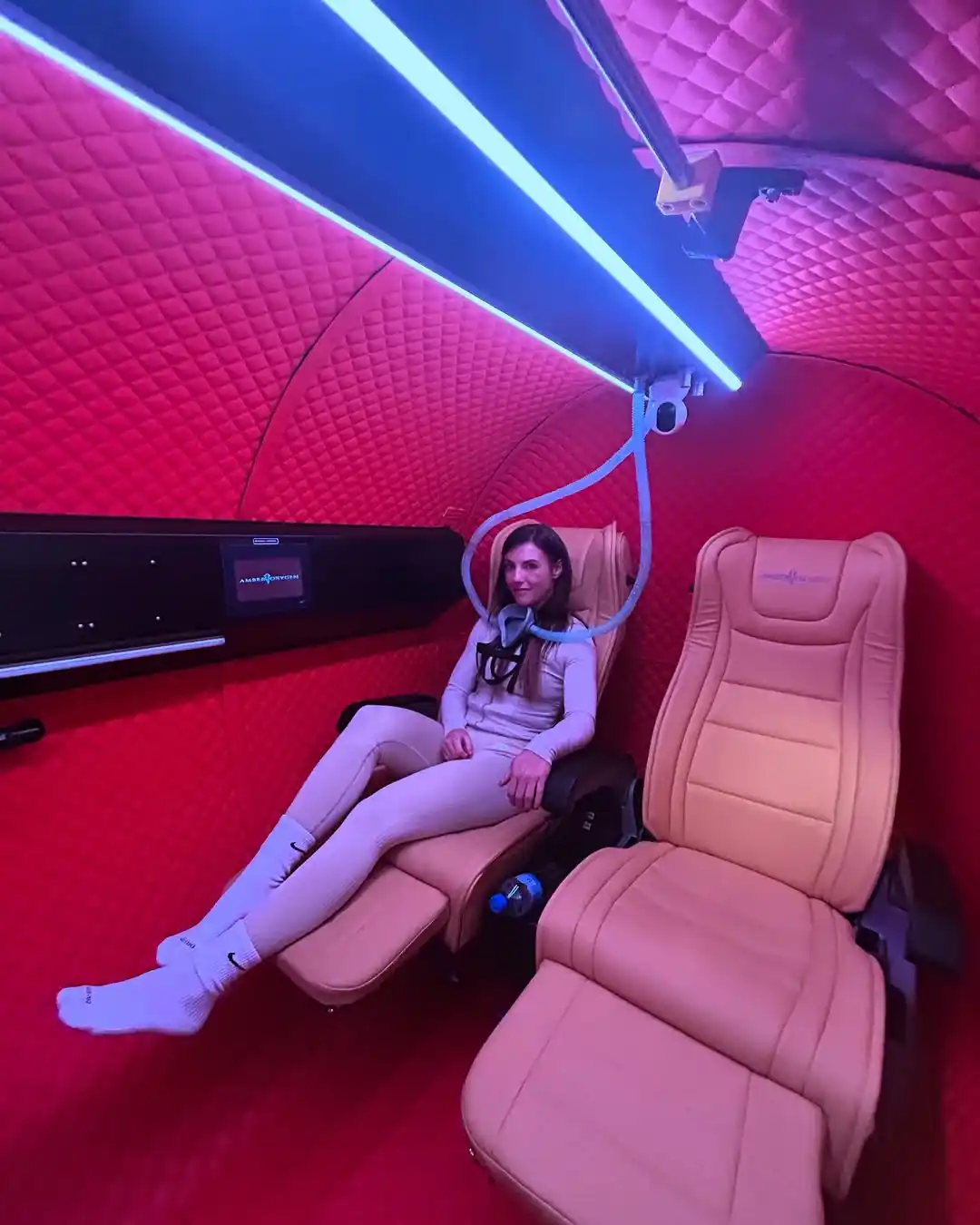

BIBS Mask
The Built-In Breathing System (BIBS) is regulated by the tempo of your breath.
The BIBS regulator is designed to circulate oxygen effectively through the polyurethane hose while removing carbon dioxide. This feature ensures a safe and controlled therapy environment and always pure oxygen breathing.
System features

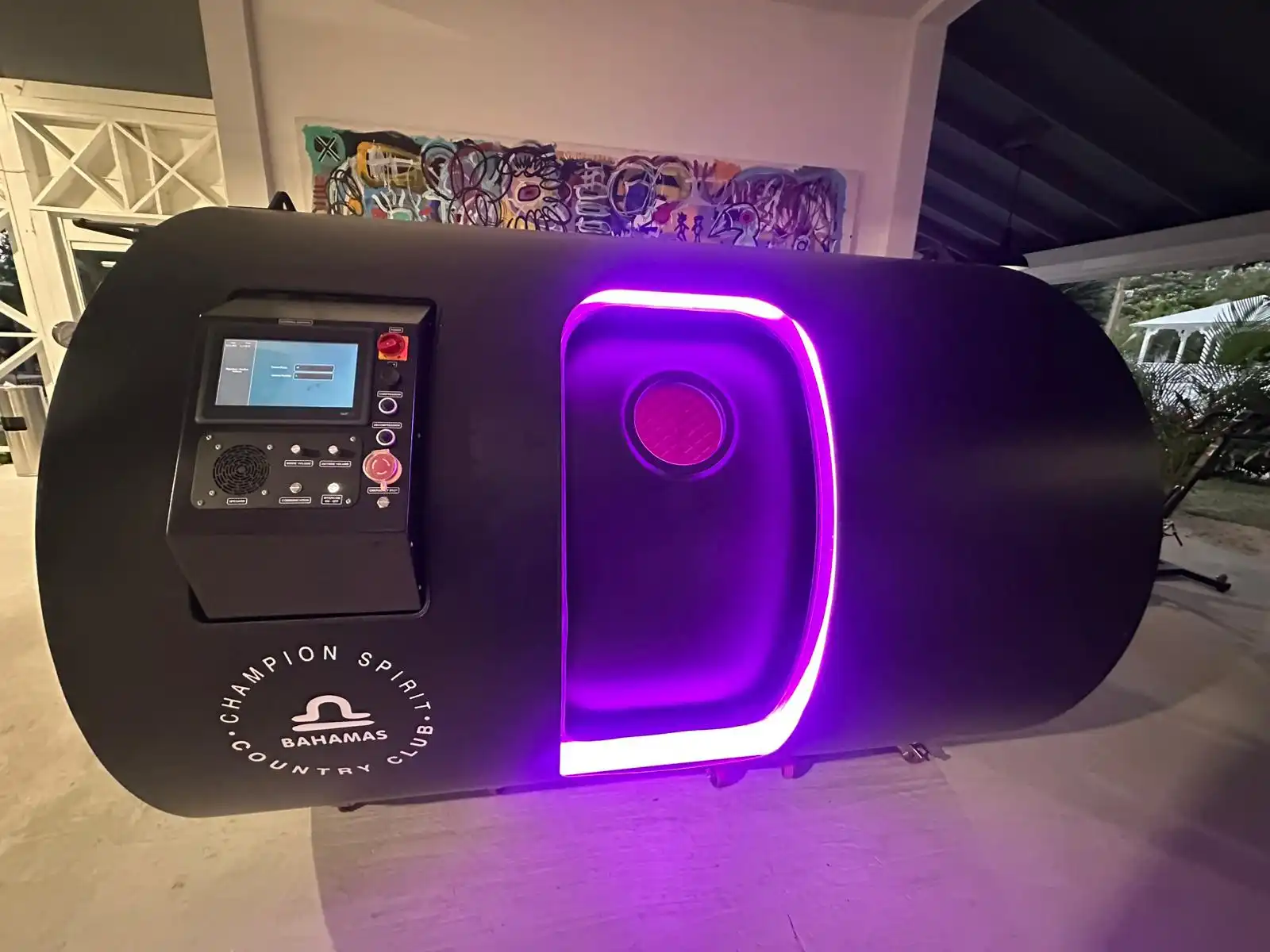

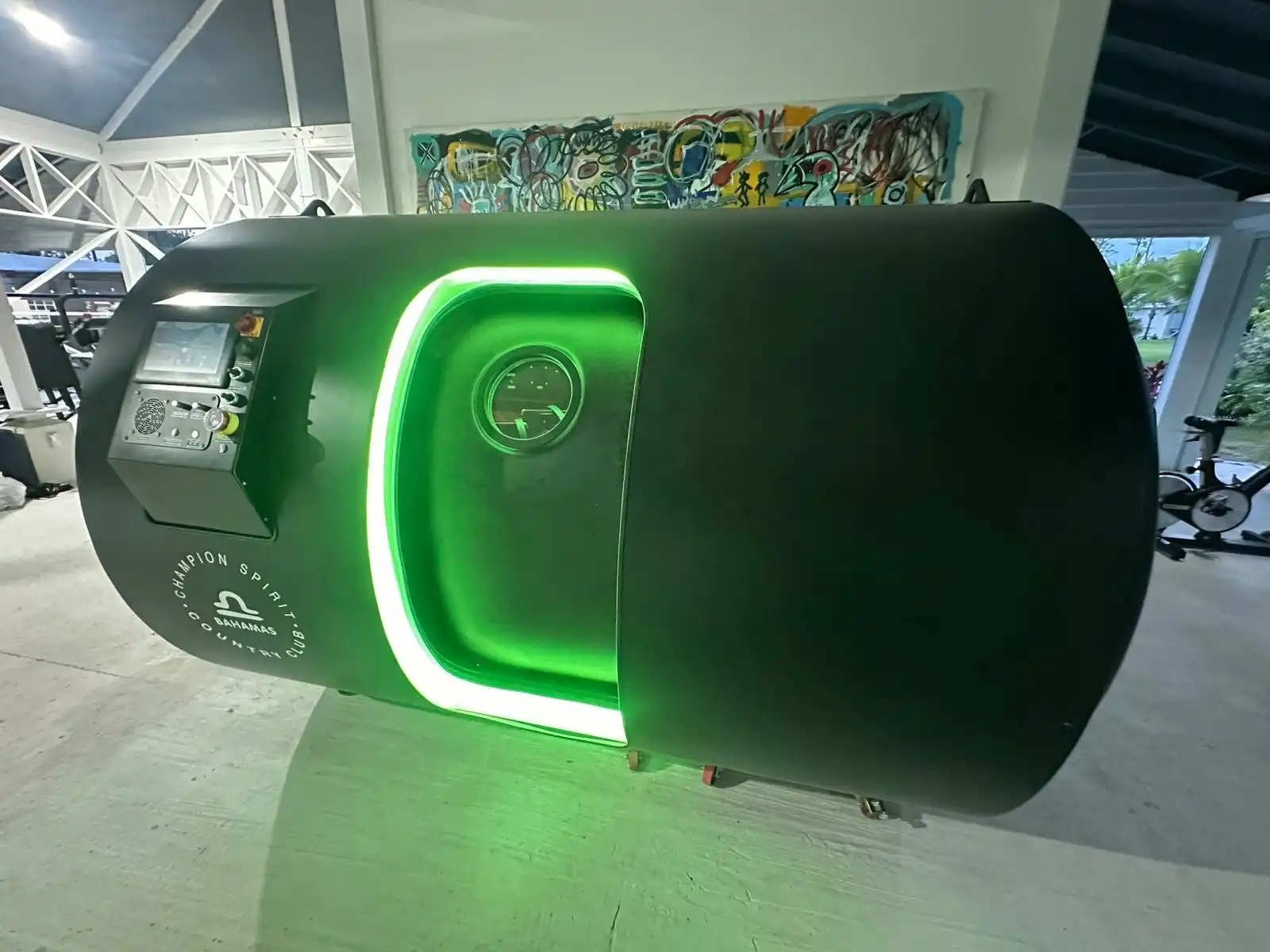

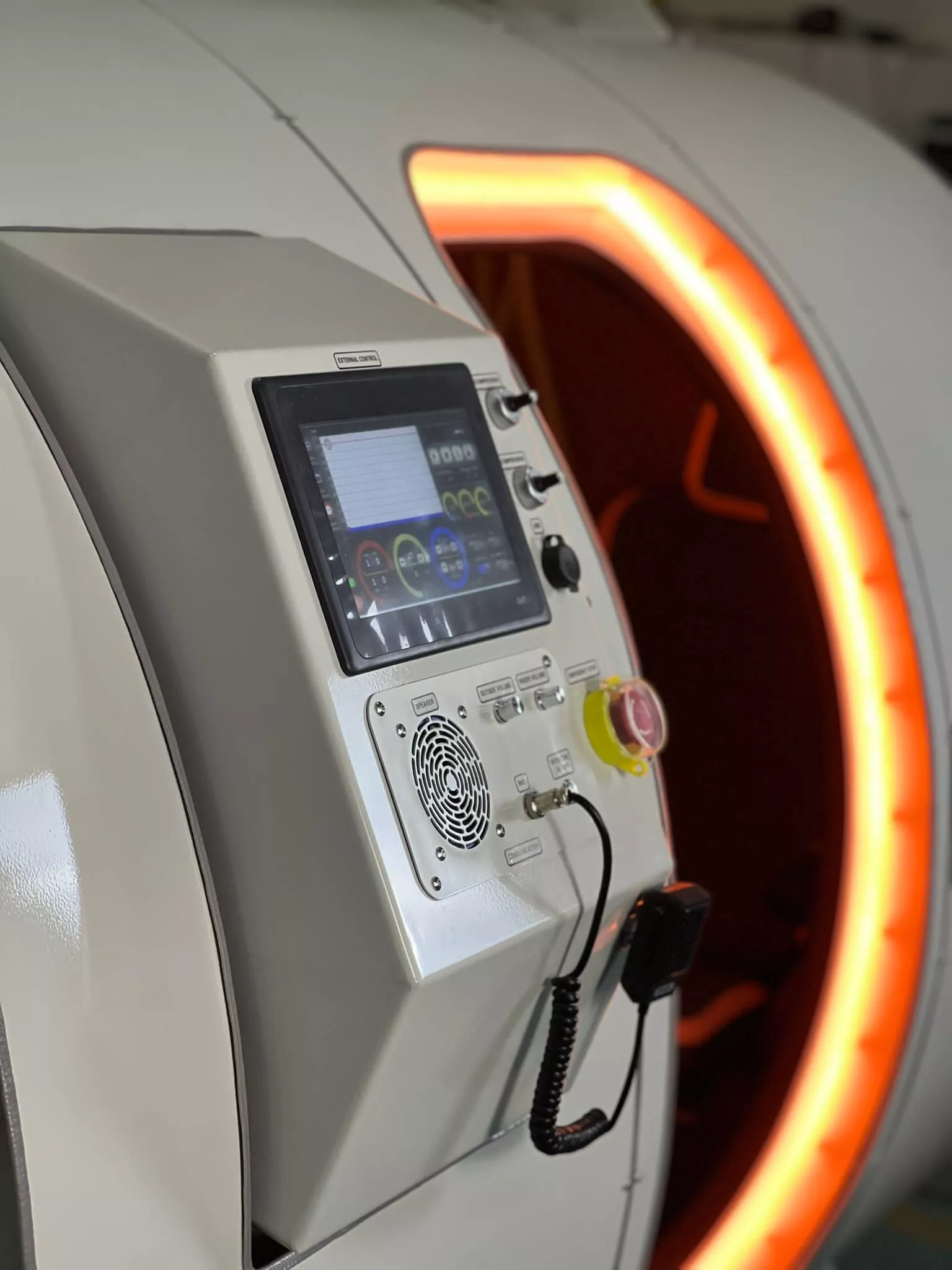

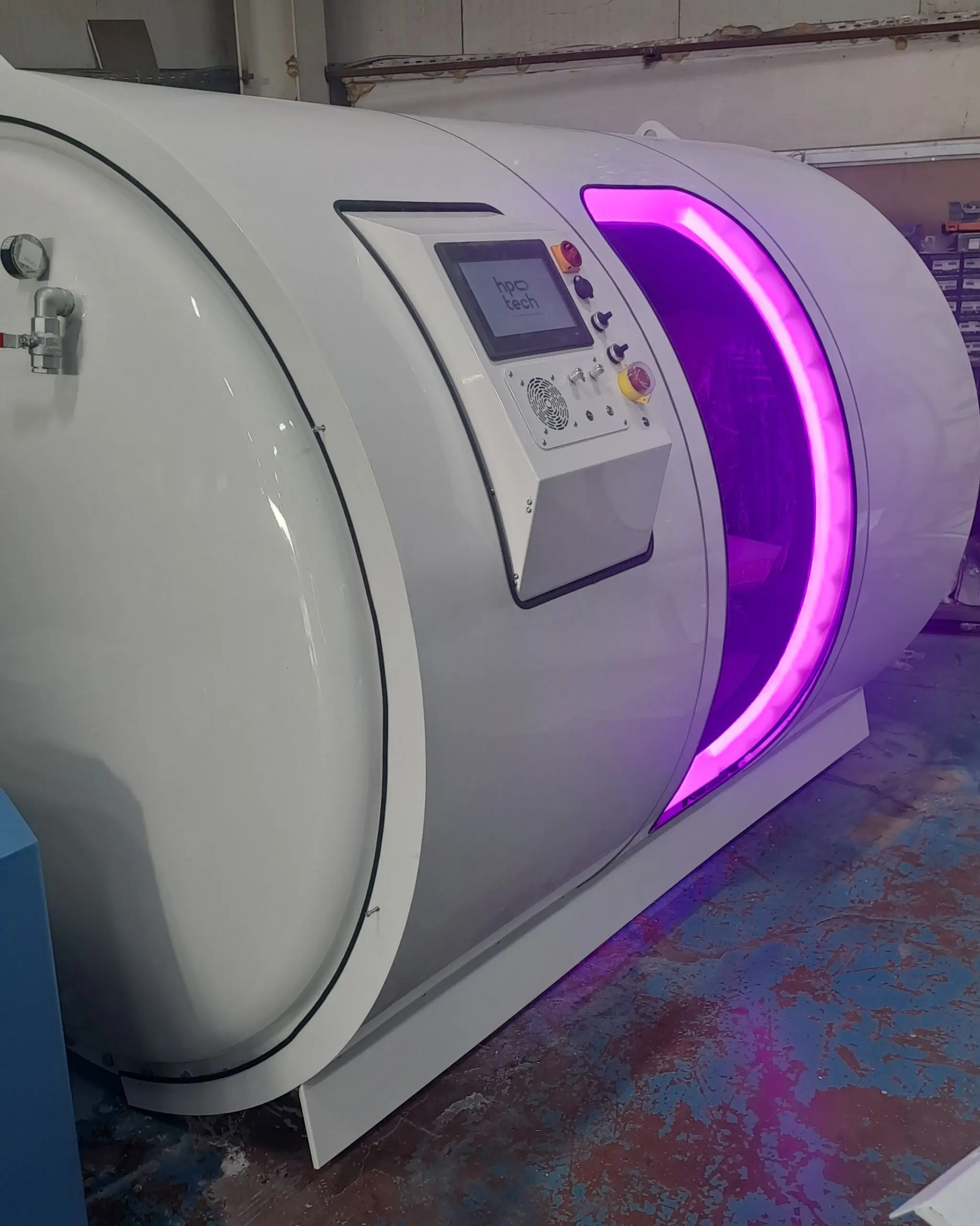

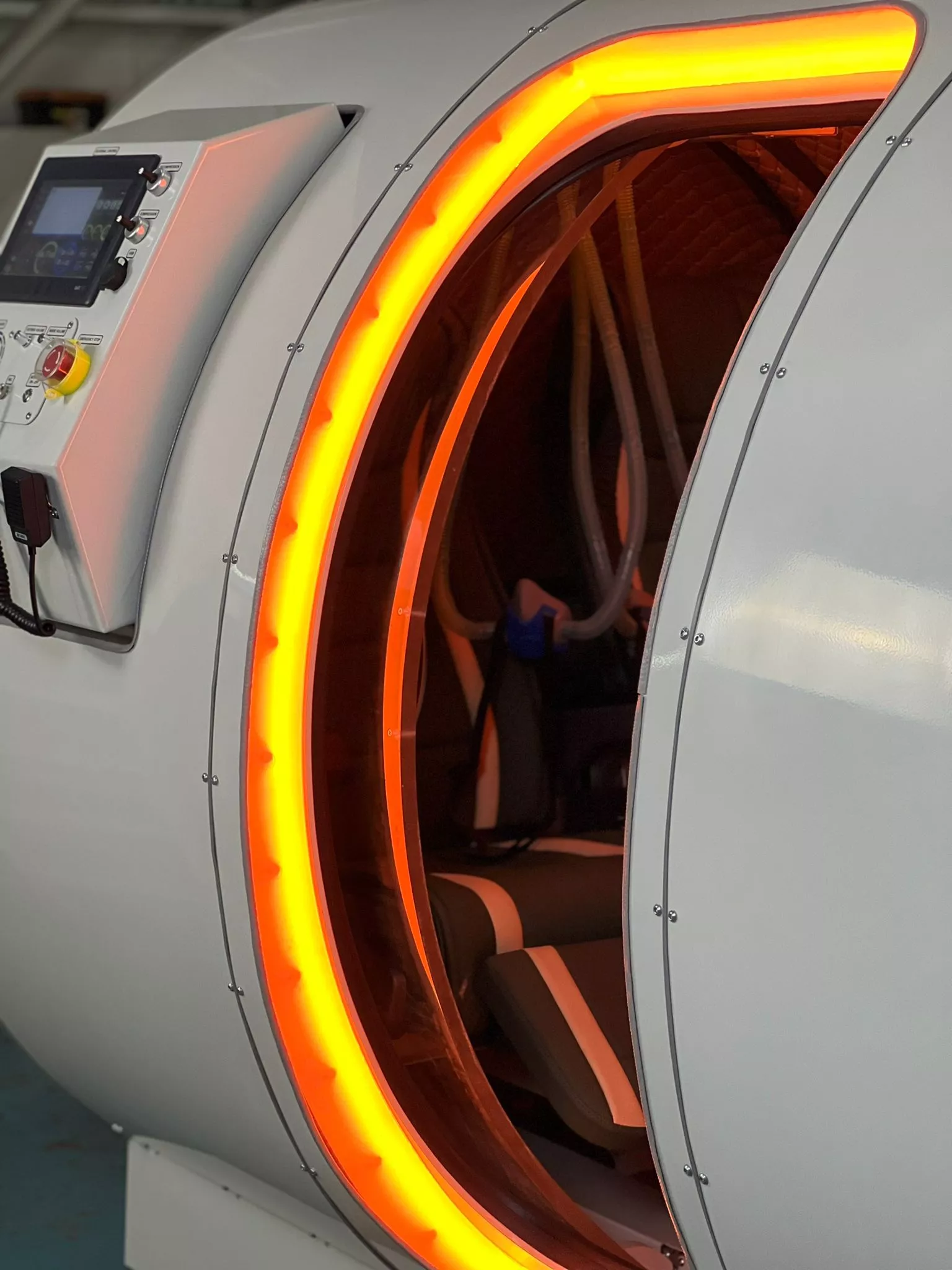

External Control Panel
Your command center for hyperbaric oxygen sessions
Navigate pressure adjustments, monitor vital information, maintain clear communication with your patient, and control every aspect of the chamber with confidence. Be prepared for any situation with manual overrides and an emergency stop button. Take control of patient well-being and elevate your hyperbaric therapy experience.
EXTERNAL CONTROL TABLET
Manage everything with the intuitive touchscreen control, from setting the pressure and session parameters to locking the chamber door. Monitor the session with clear visuals and data on chamber pressure, time, and other vital information.
MANUAL COMPRESSION KNOB
Take command with the manual pressure knobs, adjusting compression and decompression independently of the automatic system for greater control.
MANUAL DECOMPRESSION KNOB
Take command with the manual pressure knobs, adjusting compression and decompression independently of the automatic system for greater control.
EXTERNAL INTERCOM
Provides voice connection with the user inside. It’s always open for crystal clear communication with volume control.
EMERGENCY STOP BUTTON
Peace of mind control: Terminates session in the pressure room if needed, and quickly drops chamber pressure to a safe level.
POWER ON SWITCH
Start your session: The switch turns on the electrical equipment, activating the control panels for manual and/or automatic HBOT sessions.
EMERGENCY DECOMPRESSION VALVE
In case of emergency, the pressure chamber is relieved by rotating the manual spherical valve from inside or outside the chamber.
USB PORT
The handy USB 3.0 port helps update the software, upload custom settings, or download your session archive.
Internal Control Panel
Master your HBOT session from within.
Take charge of your hyperbaric experience with the intuitive internal control panel. Adjust pressure, time, and settings, all while monitoring key information on the built-in displays. You’re always in communication with the outside, all commands are mirrored for outside and inside user control.
INTERNAL CONTROL TABLET
Manage everything with the intuitive touchscreen control, from setting the pressure and session parameters to locking the chamber door. Monitor the session with clear visuals and data on chamber pressure, time, and other vital information.
CHAMBER PRESSURE INDICATOR
Mechanical dial indicator for quick analog reading of pressure variations inside the chamber.
INTERNAL COOLER
Operated using the control tablet, it adjusts chamber temperature when pressurized for a comfortable HBOT session experience.
INTERNAL INTERCOM
Provides voice communication with outside operators. It’s always open with a crystal clear connection.
EMERGENCY STOP BUTTON
Peace of mind control: Terminates session in the pressure room if needed, and quickly drops chamber pressure to a safe level.
UV-C LIGHT DISINFECTION
The chamber features UV-C light disinfection that inactivates viruses and bacteria from surfaces and ambient air for a clean and safe interior environment.
OCCUPANCY SENSOR
Automatically disables UVC when someone enters pressure chamber, ensuring disinfection and user safety.
Software control
The control consoles, located on the outside and inside the chamber, provide the controls and instrumentation for chamber operation. This includes the gas control systems and communications system. Chamber control is fully automated via the Automation System.
Advanced monitoring & safety systems
HPO TECH systems are equipped with advanced monitoring sensors to track, monitor and control essential parameters during the therapy session. These monitoring capabilities allow healthcare providers to closely observe the patient’s response, adjust treatment if necessary, and assess the overall progress of the therapy.
Automation system
The Automation System controls the chamber and runs sessions automatically. It consists of automation software, industrial PLC, sensors, valves, and PC.
The PLC is the core of the system, monitoring and controlling all connected devices (sensors, valves, etc.). The specific devices and functions controlled depend on customer configuration.
Tracking session progress and user data in real-time
Real-time session information is gathered from sensors and displayed to monitor session status.
The monitoring systems track essential parameters, including atmospheric pressure, oxygen concentration, temperature, humidity, patient vitals, and treatment duration. Real-time monitoring enhances patient safety and empowers the medical team to make informed decisions.
Session status management
- Automatic session control for speed, pressure, and time
- Entry of new treatment profiles
- Chamber ventilation
- I/O calibration and other functions
- Logging, reviewing, and printing tools
- Session and patient information access
- Opening sessions for Automation Software
- Valve control by dimmer
- Lighting On/Off
- UVC On/Off
- Radiator On/Off
- Real-time monitoring of temperature, humidity, pressure, and oxygen
- Audio/visual warnings to the operator
- Audible warning signal and safety button
- Valve openings or maximum compression/decompression rate settings
- Ear opening assistance
- Session recording

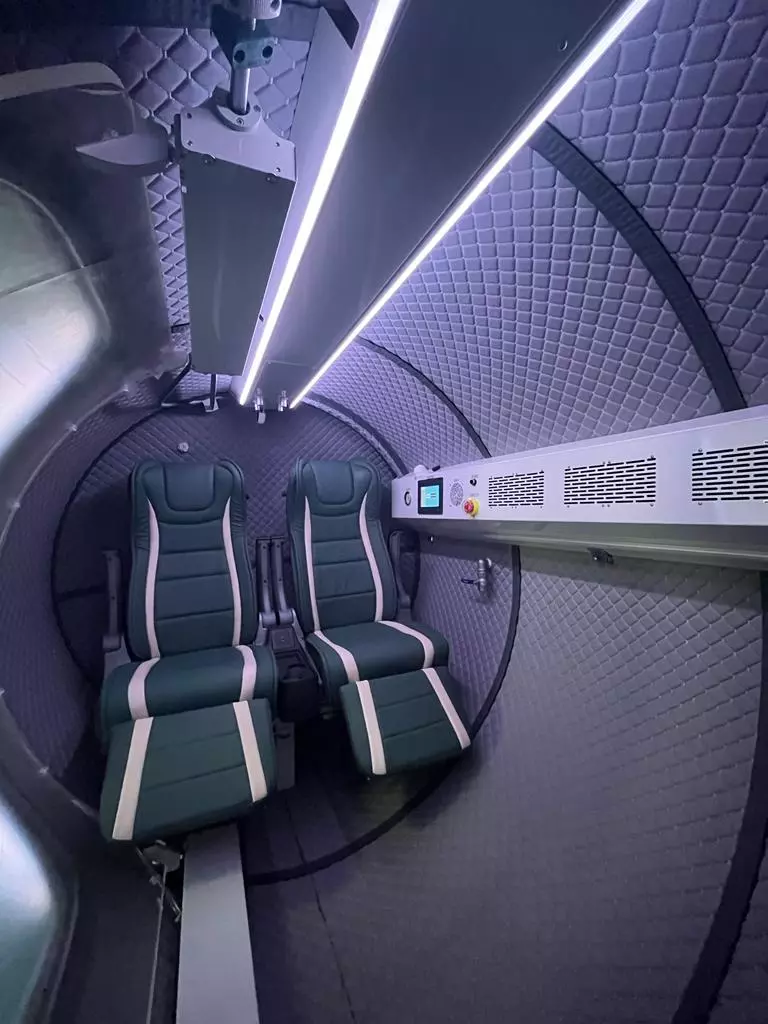

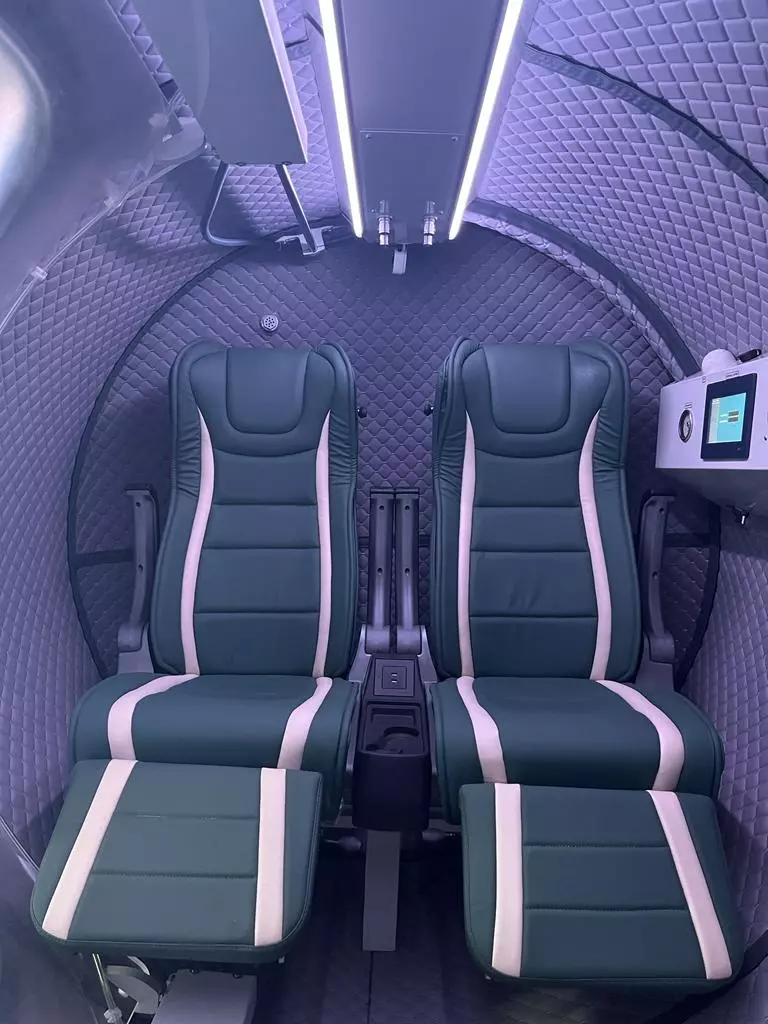

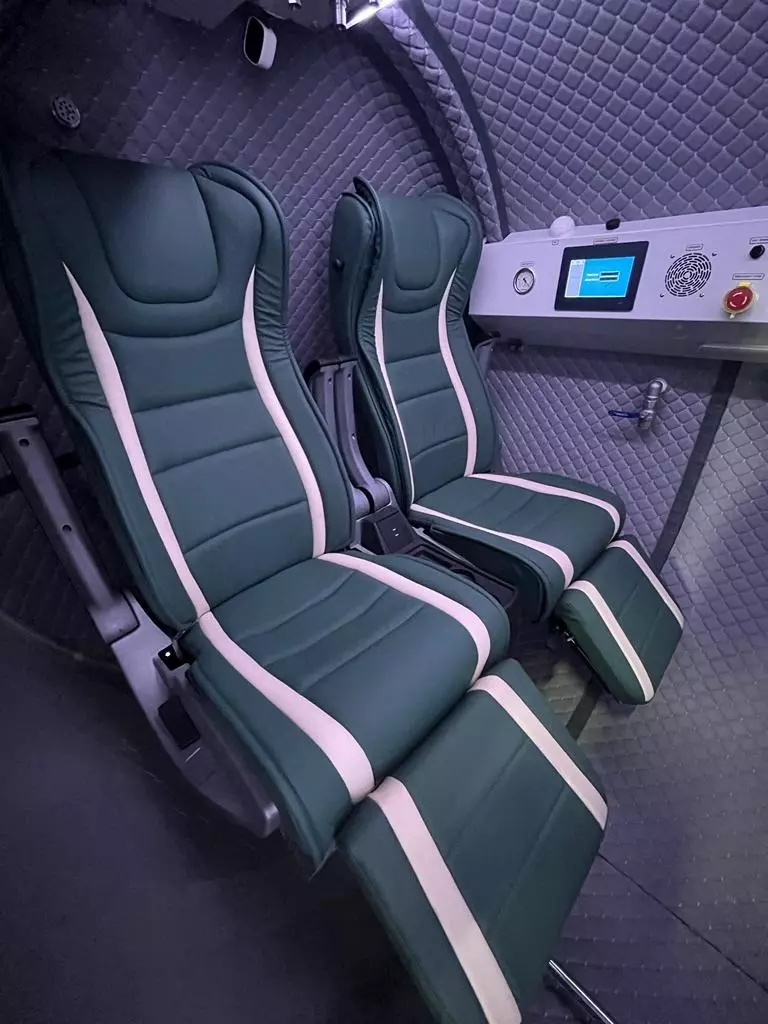

Ergonomic seating
Experience maximum comfort
Tailored to your body’s physiology, the ergonomic seats reduce pressure point stress and boost circulation, ensuring a relaxed and effective oxygen treatment session.
Interior leather
A touch of class
The interior is wrapped in high-quality ecologic leather upholstery for the most comfortable and inviting feeling, together with a classy look.
Smart technology, user-friendly operation.
Combine comfort, safety, and user interaction for an exceptional hyperbaric experience.
Simple operation
All chamber components (hardware and software) are designed for ease of operation and require minimum maintenance.
Always in contact
Advanced monitoring and communication systems ensure continuous patient care. You can hear, see, and monitor the patient at all times during treatment.
Patient monitoring
Chamber penetrations and electrical connectors provide the capability to connect vital monitoring (such as EEG, ECG, TCOM and blood pressure).
Entertainment system
The chamber is equipped with large-screen TV, or tablets for the users, including other customizable additions.
LED Lights
You can create a serene atmosphere inside with adjustable LED RGB lights.
Ventilation
The automatic ventilation system ensures the air inside is always fresh.
Pneumatic controls
Chamber controls are completely pneumatic in nature, and require only a compressed gas source.
Power source
A discrete power source allows continued operation of chamber communications in the event of a power outage.
