PETRA is the hyperbaric chamber designed for total visibility
2.4 ATA PRESSURE
1-SEATER
The priority with PETRA is to provide total visibility during hyperbaric oxygen therapy (HBOT). This focus on user experience creates a safe and serene environment with total connection to the outside to enjoy HBOT on the inside.
The Total Visibility concept
Enjoy the session from the inside.

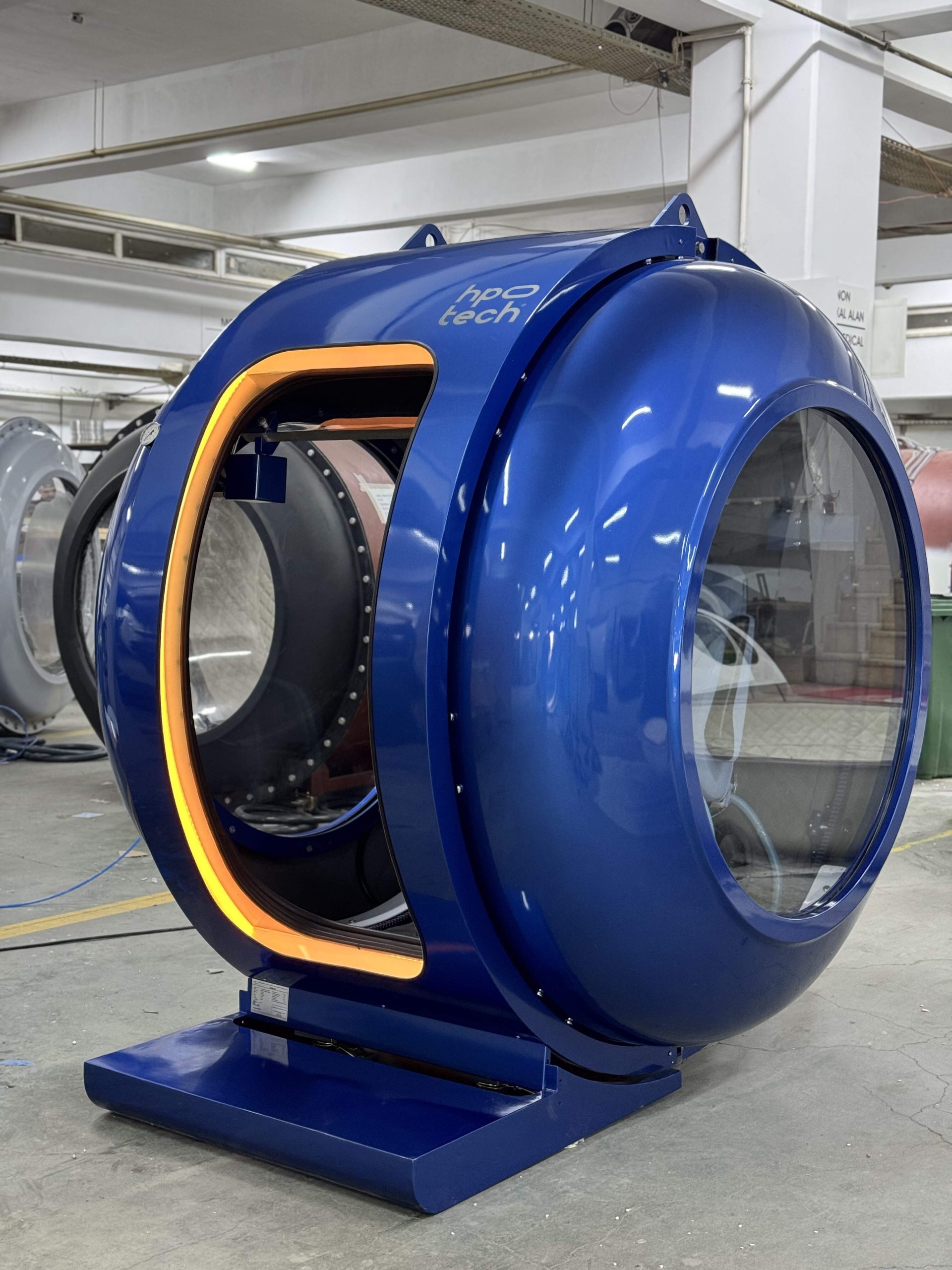

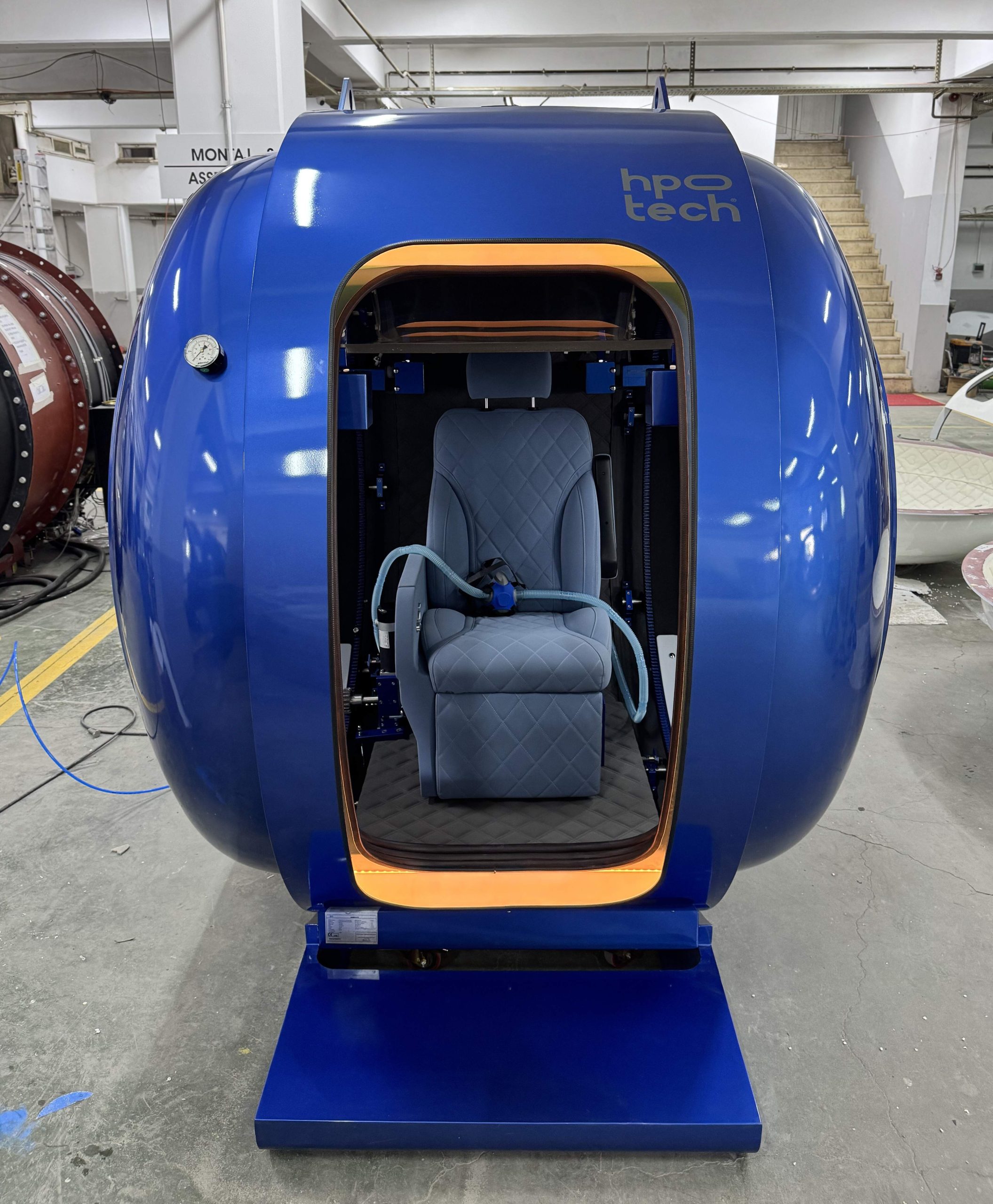

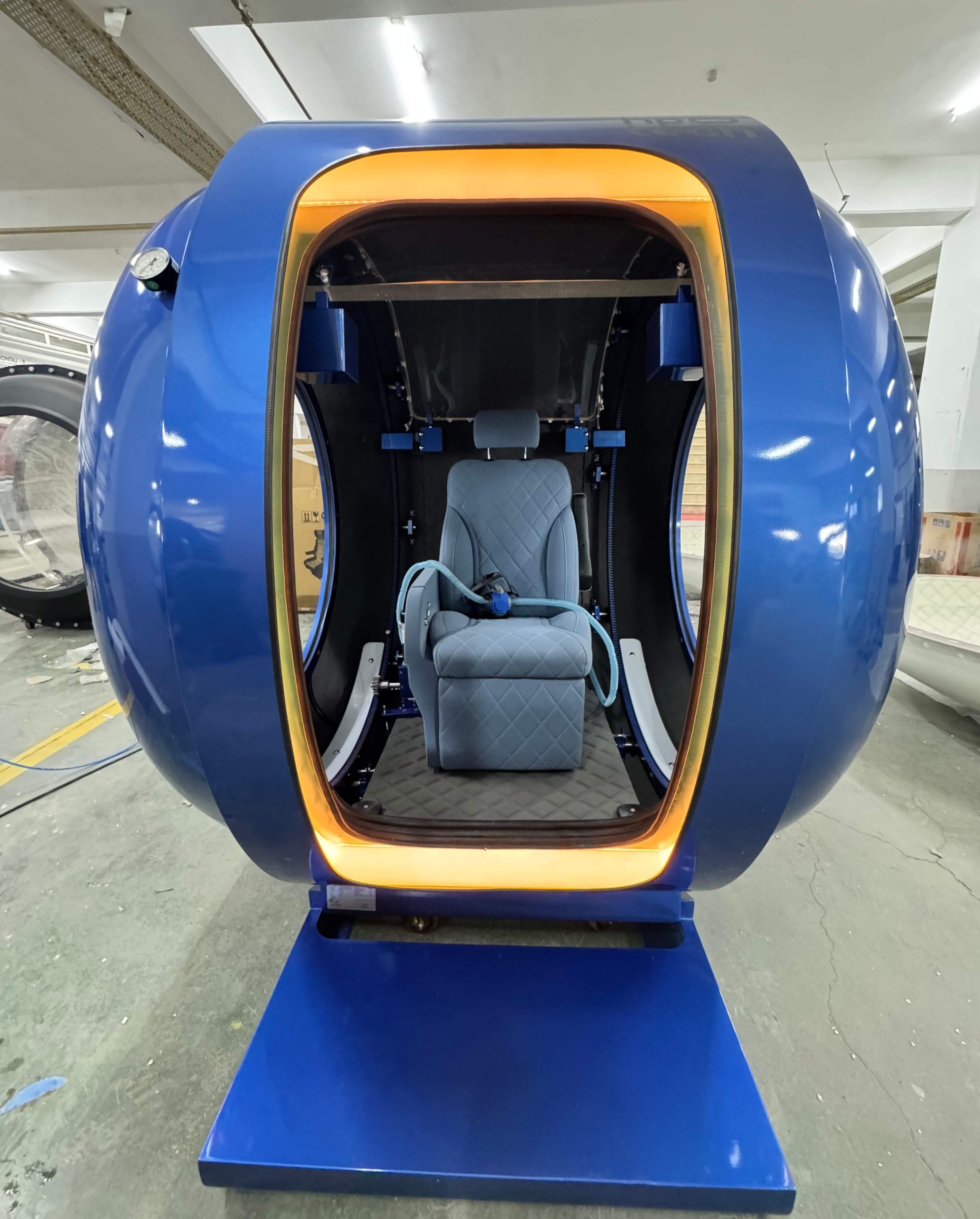

The PETRA hyperbaric chamber features an ingenious retractable front acrylic panel (30 mm thickness) to facilitate a wider accessway inside the chamber for people with mobility challenges. The retractable system works with a pneumatic motor for smooth on-axis window movement.
Stay connected to the outside.

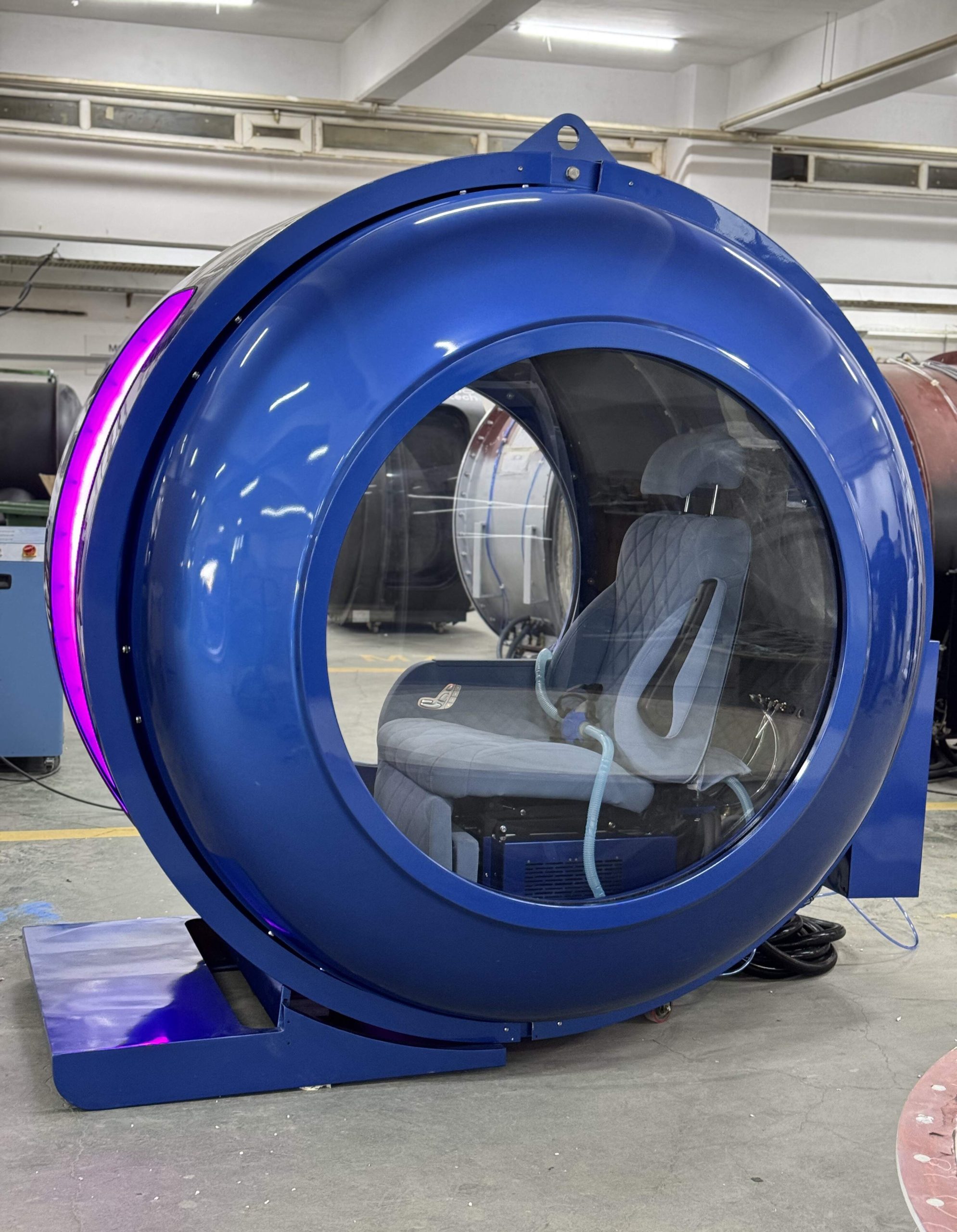

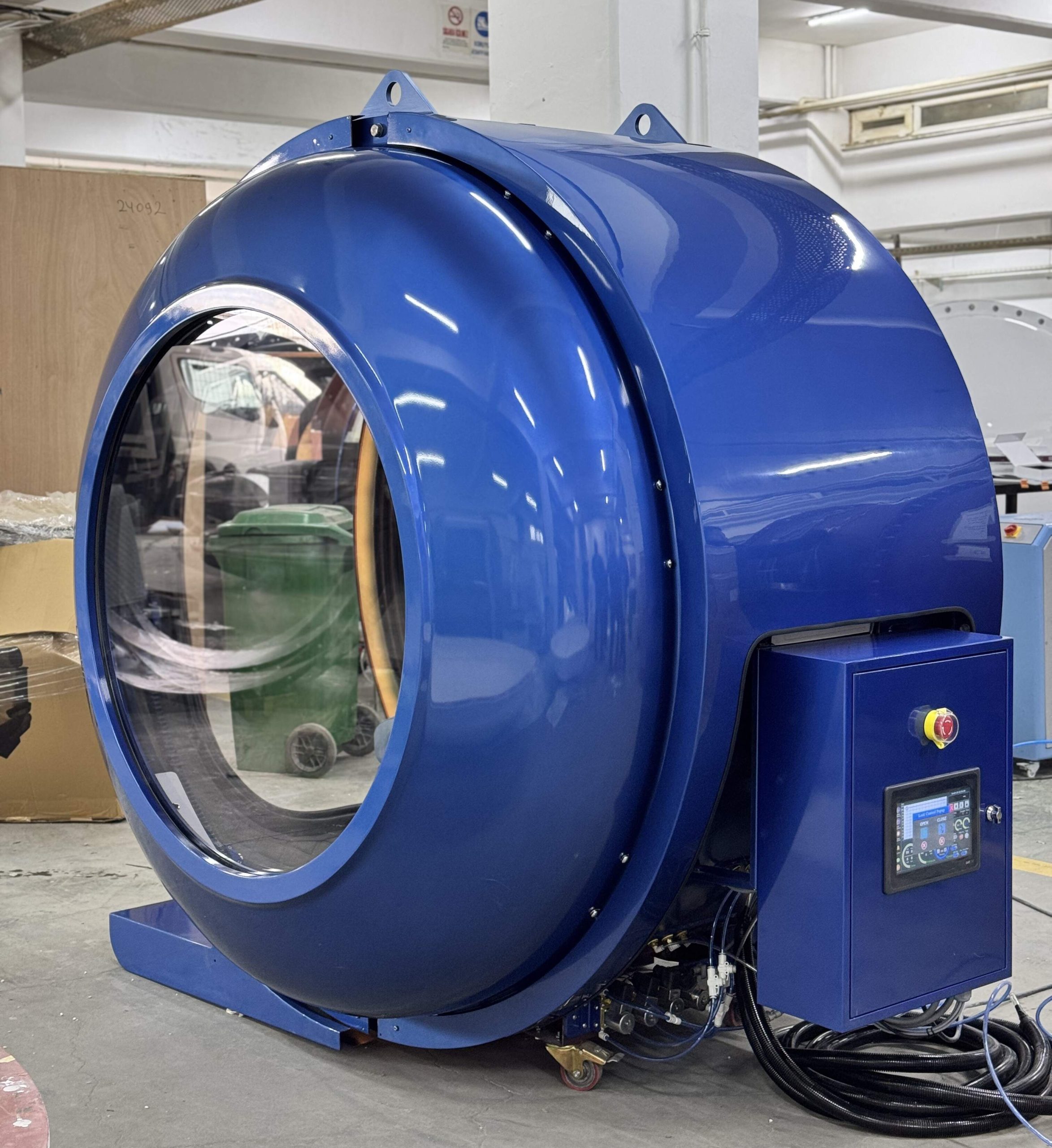

The retractable window opening provides the solution to design the chamber with 3 big windows that connect the user to the outside. This helps eliminate the sense of confinement and claustrophobia during HBOT sessions.
Wireless software control
Initiate your personal HBOT session
There is no need for a control panel when you can operate the software with a wireless connection using the tablet, or your smartphone. Customize the HBOT session on the user-friendly dashboard and enjoy breathing pure oxygen.
Assistant controlled mode
It’s easier for the assistant in the healthcare center to set up each HBOT session on a dedicated tablet and keep a close eye on the user inside the chamber. A manual emergency release valve doubles the wireless software control to stop the session for extra safety.
The hyperbaric chamber should be your Zen space.
PETRA is built for you to enjoy the most positive experience with hyperbaric oxygen therapy.
Large panoramic windows provide an open and calming environment. Inside the chamber, you can breathe pure oxygen through the BIBS Mask, regulated by the tempo of your breath, enjoying the ultimate comfort of the ergonomic chair.
Built with medical-grade technology, for safe and effective HBOT, PETRA is your oasis of pure oxygen.
The hyperbaric chamber system
System components
Hyperbaric Chamber
1 SEAT
The Hyperbaric Chamber is a capsule for breathing pure oxygen under controlled pressure levels up to double the atmospheric pressure (2.4 ATA).
Air Compressor
1 UNIT
The Hyperbaric chamber is pressurized with breathable air from the Air Compressor. Pressure + Oxygen are the two most important factors in HBOT.
Oxygen Concentrator
1 UNIT
During treatment, the user breathes high-purity oxygen supplied using the Oxygen Concentrators, directly into the BIBS (Built-In Breathing system). The number of Oxygen Concentrators is equal to the number of patients inside.
Air Cooler
1 UNIT
The system is also connected to an Air Cooler to keep the air fresh inside the chamber and the temperature under control.
BIBS Mask
The Built-In Breathing System (BIBS) is regulated by the tempo of your breath.
The BIBS regulator is designed to circulate oxygen effectively through the polyurethane hose while removing carbon dioxide. This feature ensures a safe and controlled therapy environment and always pure oxygen breathing.
Your wireless command center for hyperbaric oxygen sessions
Take control of the HBOT session using the tablet or your smartphone. Open and close the retractable door, adjust pressure, monitor vital information, maintain clear communication with your patient, and control all chamber functionality.
The control tablet
Manage everything with the intuitive touchscreen control, from setting the pressure and session parameters to locking the chamber door. Monitor the session with clear visuals and data on chamber pressure, time, and other vital information.
Advanced monitoring & safety systems
HPO TECH systems are equipped with advanced monitoring sensors to track, monitor, and control essential parameters during the therapy session. These monitoring capabilities allow healthcare providers to observe the patient’s response, adjust protocols, and assess the progress of the therapy.
Automation system
The Automation System controls the chamber and runs sessions automatically. It consists of automation software, industrial PLC, sensors, valves, and PC.
The PLC is the core of the system, monitoring and controlling all connected devices (sensors, valves, etc.). The specific devices and functions controlled depend on customer configuration.
Tracking session progress and user data in real-time
Real-time session information is gathered from sensors and displayed to monitor session status.
The monitoring systems track essential parameters, including atmospheric pressure, oxygen concentration, temperature, humidity, patient vitals, and treatment duration. Real-time monitoring enhances patient safety and empowers the medical team to make informed decisions.
Session status management
- Automatic session control for speed, pressure, and time
- Entry of new treatment profiles
- Chamber ventilation
- InterCom System for voice communication
- I/O calibration and other functions
- Logging, reviewing, and printing tools
- Session and patient information access
- Opening sessions for Automation Software
- Valve control by dimmer
- Lighting On/Off
- UVC On/Off
- Radiator On/Off
- Real-time monitoring of temperature, humidity, pressure, and oxygen
- Audio/visual warnings to the operator
- Audible warning signal and safety button
- Valve openings or maximum compression/decompression rate settings
- Ear opening assistance
- Session recording
System features
POWER ON SWITCH
Start your session: The switch turns on the electrical equipment, activating the control panels for manual and/or automatic HBOT sessions.
EMERGENCY STOP BUTTON
Peace of mind control: Terminates session in the pressure room if needed, and quickly drops chamber pressure to a safe level.
EMERGENCY DECOMPRESSION VALVE
In case of emergency, the pressure chamber is relieved by rotating the manual spherical valve from inside or outside the chamber.
USB PORT
The handy USB 3.0 port helps update the software, upload custom settings, or download your session archive.
Ergonomic seating
Experience maximum comfort
Tailored to your body’s physiology, the ergonomic seats reduce pressure point stress and boost circulation, ensuring a relaxed and effective oxygen treatment session.
Interior leather
A touch of class
The interior is wrapped in high-quality ecologic leather upholstery for the most comfortable and inviting feeling, together with a classy look.
Smart technology, user-friendly operation.
Combine comfort, safety, and user interaction for an exceptional hyperbaric experience.
Simple operation
All chamber components (hardware and software) are designed for ease of operation and require minimum maintenance.
Always in contact
Advanced monitoring and communication systems ensure continuous patient care. You can hear, see, and monitor the patient at all times during treatment.
Patient monitoring
Chamber penetrations and electrical connectors provide the capability to connect vital monitoring (such as EEG, ECG, TCOM and blood pressure).
Entertainment system
The chamber can be equipped with large-screen TV, or tablets for the users, including other customizable additions.
LED Lights

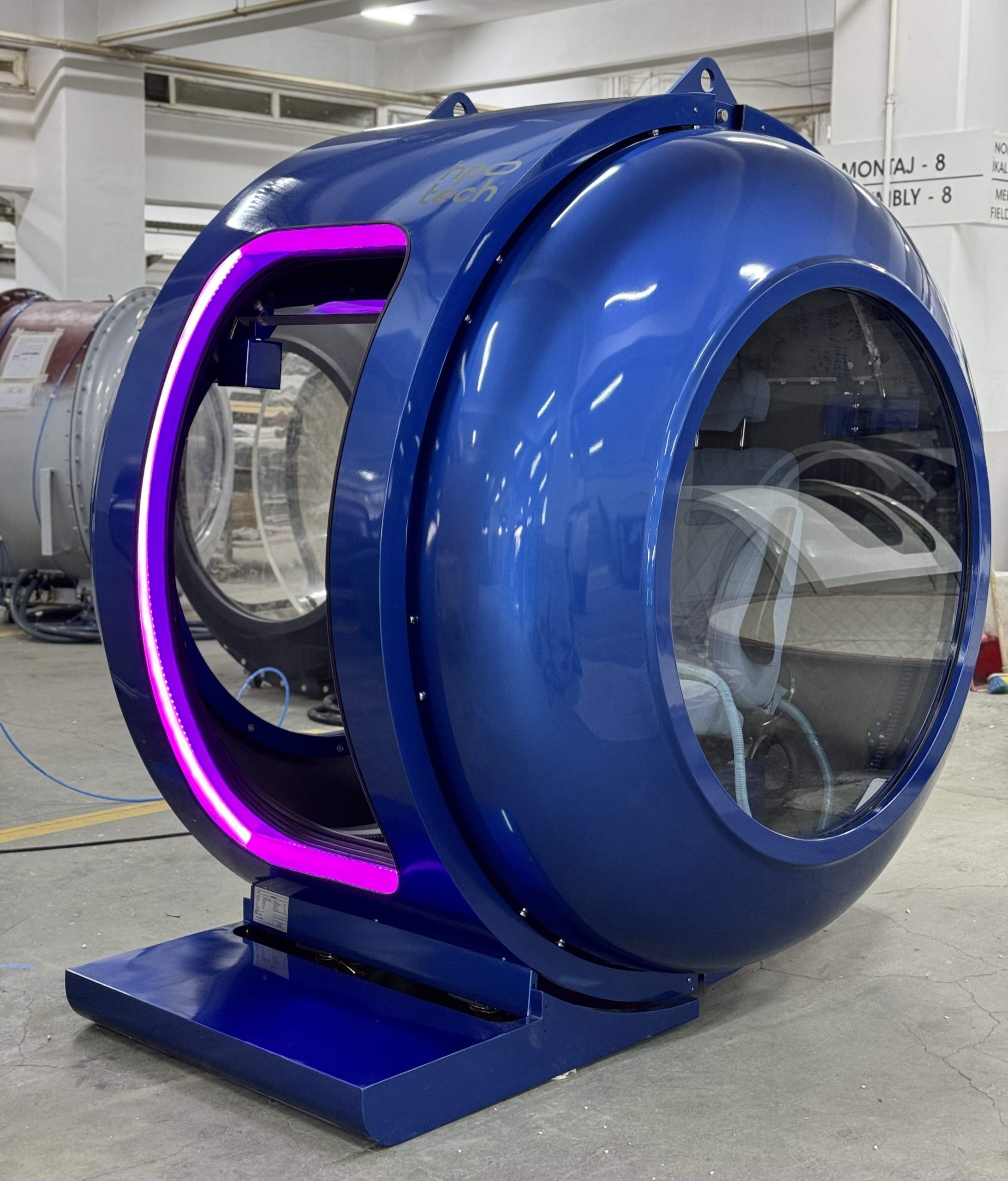

You can create a serene atmosphere inside with adjustable LED RGB lights.
Ventilation
The automatic ventilation system ensures the air inside is always fresh.
Pneumatic controls
Chamber controls are completely pneumatic in nature, and require only a compressed gas source.
Power source
A discrete power source allows continued operation of chamber communications in the event of a power outage.
